CCGT 32.50.5-SF3:T6310

CCGT 32.50.5-SF3:T6310

$169.17 CAD $243.50 CAD
Skip to product information
CCGT 32.50.5-SF3:T6310
CCGT 32.50.5-SF3:T6310

Dormer-Pramet

CCGT 32.50.5-SF3:T6310

Material ID: 7168545

$169.17 CAD $243.50 CAD

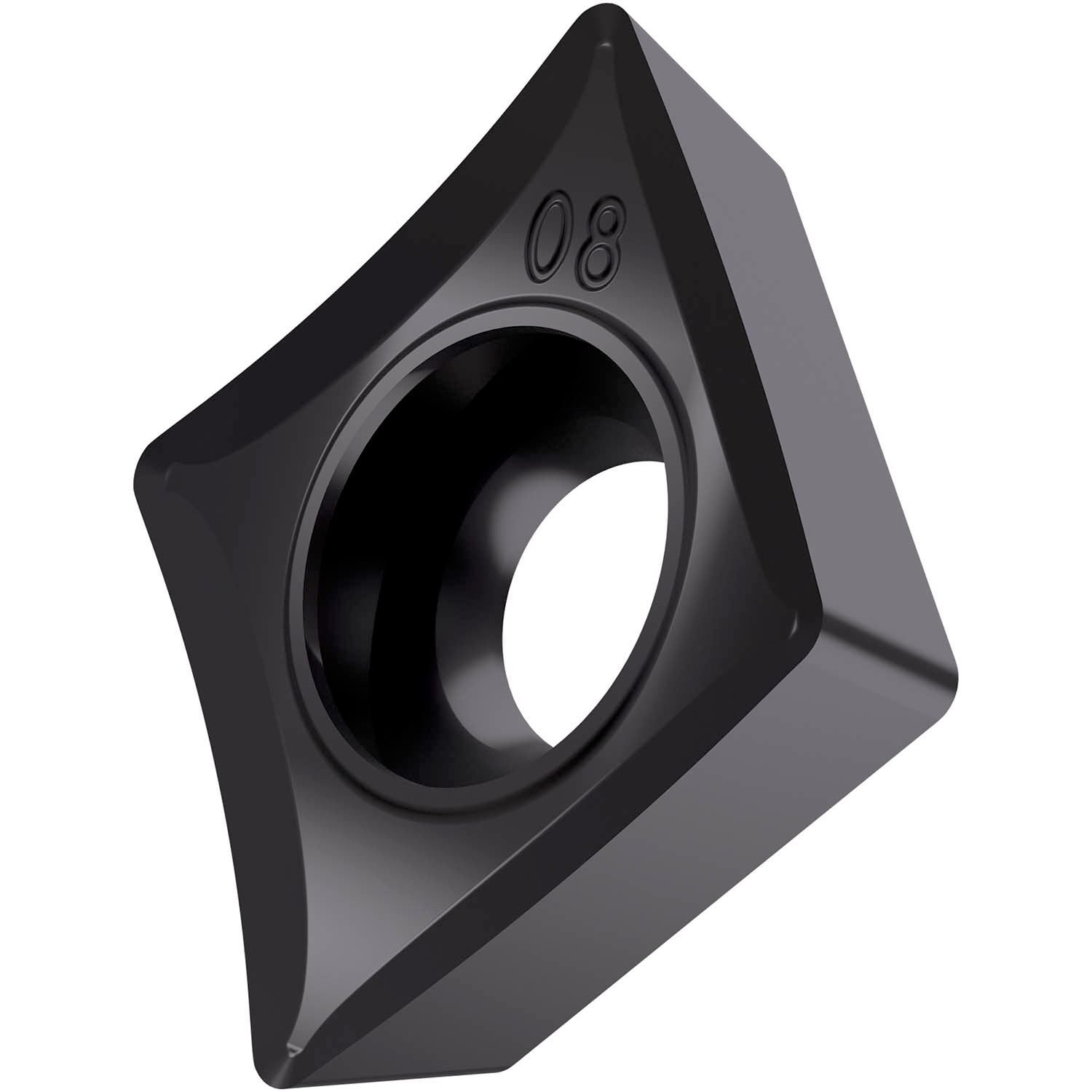

CCGT 32.50.5-SF3:T6310

Turning Insert - Positive

Material ID: 7168545


Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 9.525 mm, 3.97 mm thick, 0.2 mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SF3 with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges M01 -M15/N05 -N20 and S01 -S15, for fine to medium machining of stainless-steels, non-ferrous metals and super-alloys

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7168545
