Dormer-Pramet

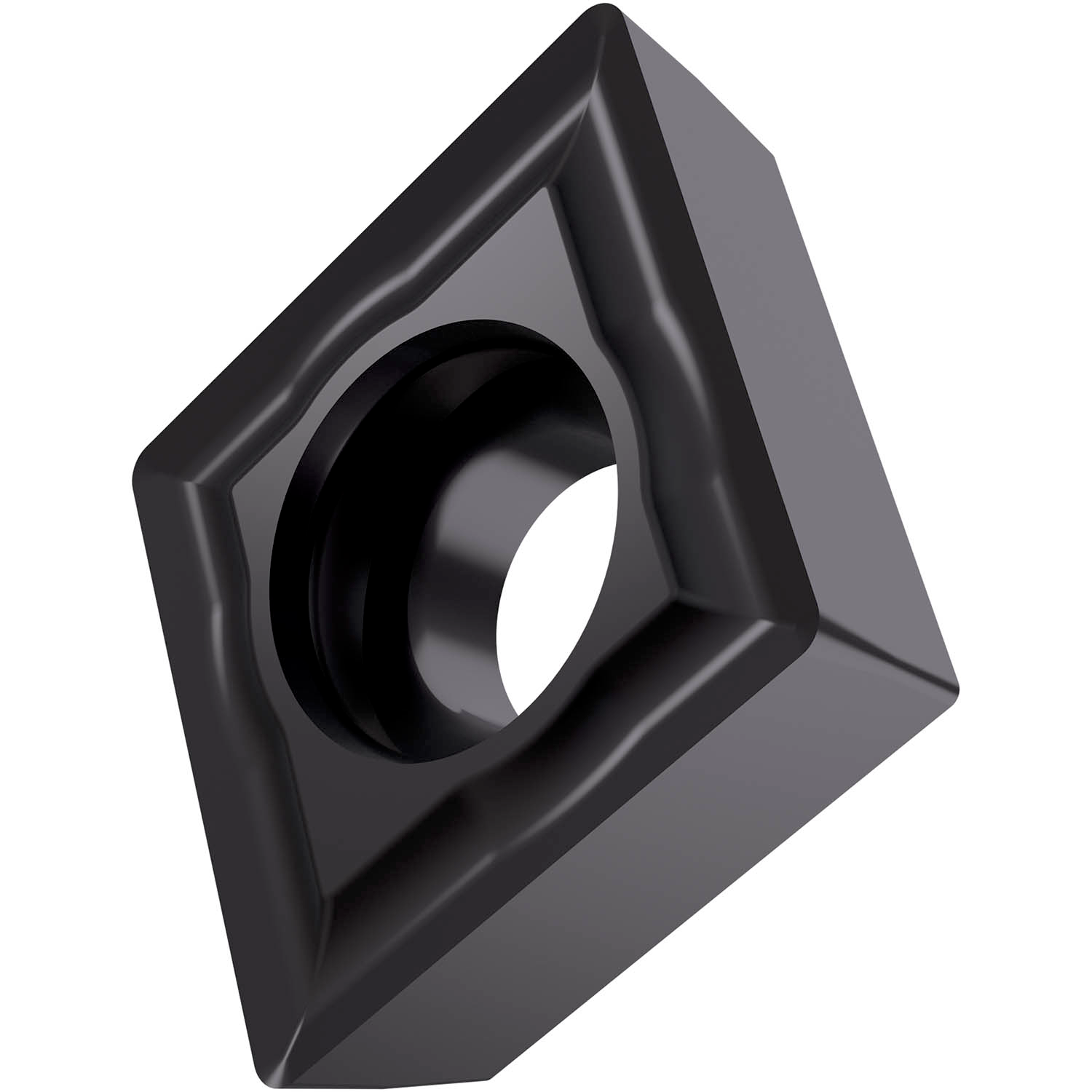

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 9.525 mm, 3.97 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NF2 with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges M01 -M15 and S01 -S15, for fine to medium machining of stainless-steels and super-alloys

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7167459
