Dormer-Pramet

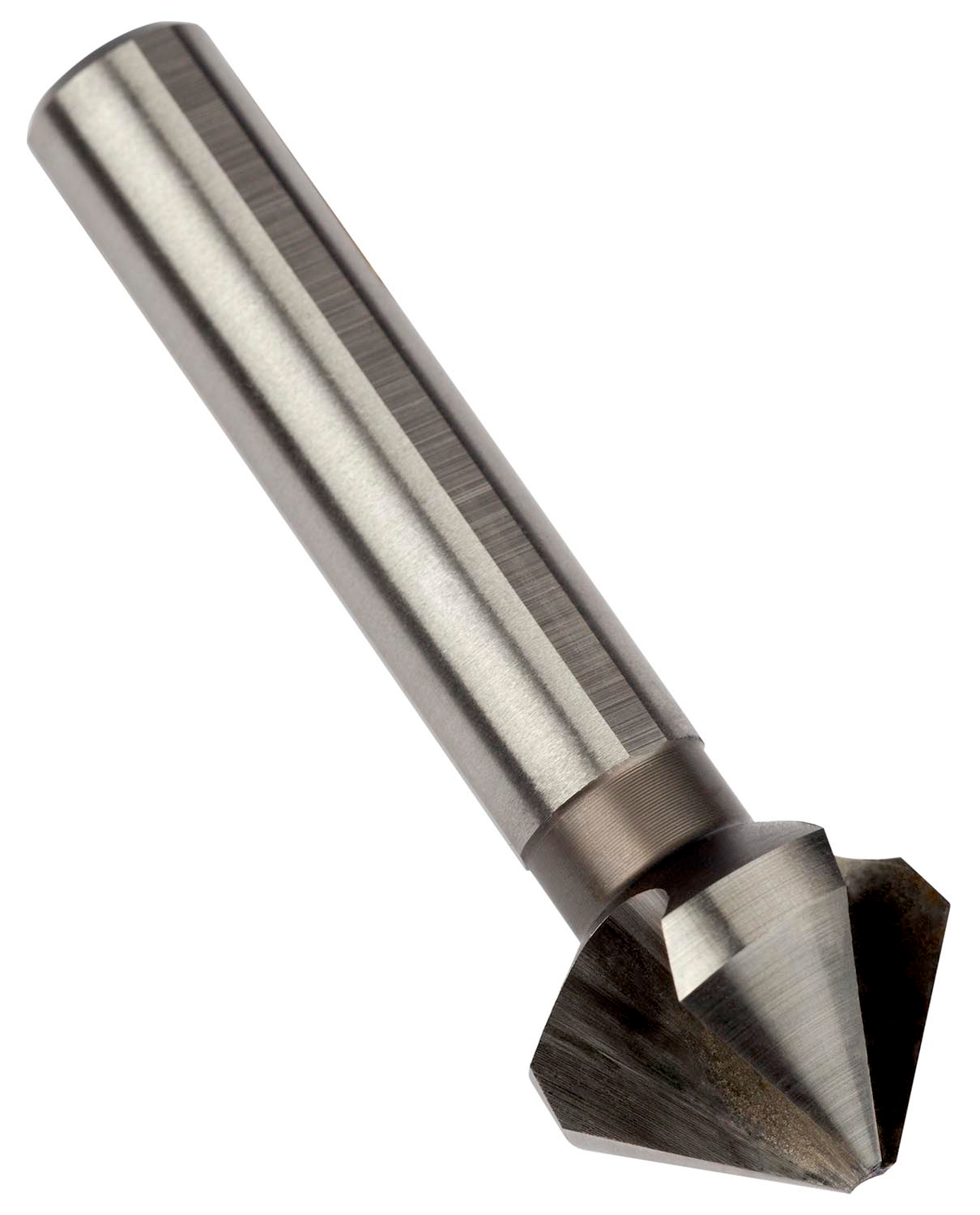

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 37.00 mm with an overall length of 118 mm and a head length of 21.2 mm and 16 mm tri-flat shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.50 mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, grey cast-iron, copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7147789
