Dormer-Pramet

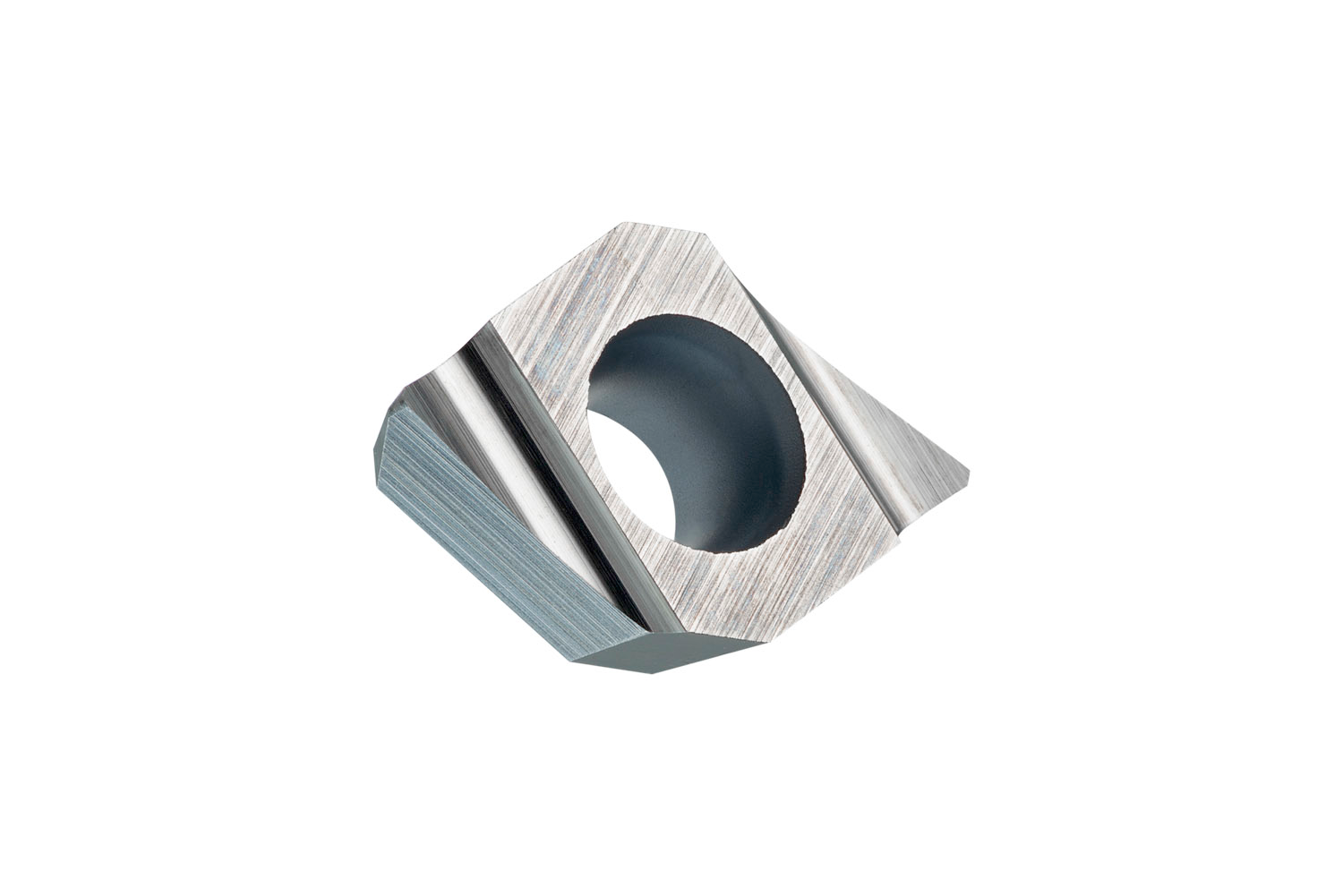

Special design positive turning insert, 75° rhomboid with 11° clearance, inscribed circle diameter of 5.56 mm, 2.38 mm thick, 0.2 mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker JZ with sharp cutting edges, in grade TT010, an uncoated cermet within ISO range P01 -P10, for fine machining of steels with a right handed turning tool

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7080628
