CCMT 32.52W-FM:T9325

CCMT 32.52W-FM:T9325

$116.67 CAD $168.00 CAD
Skip to product information
CCMT 32.52W-FM:T9325
CCMT 32.52W-FM:T9325

Dormer-Pramet

CCMT 32.52W-FM:T9325

Material ID: 7034006

$116.67 CAD $168.00 CAD

CCMT 32.52W-FM:T9325

Turning Insert - Positive

Material ID: 7034006

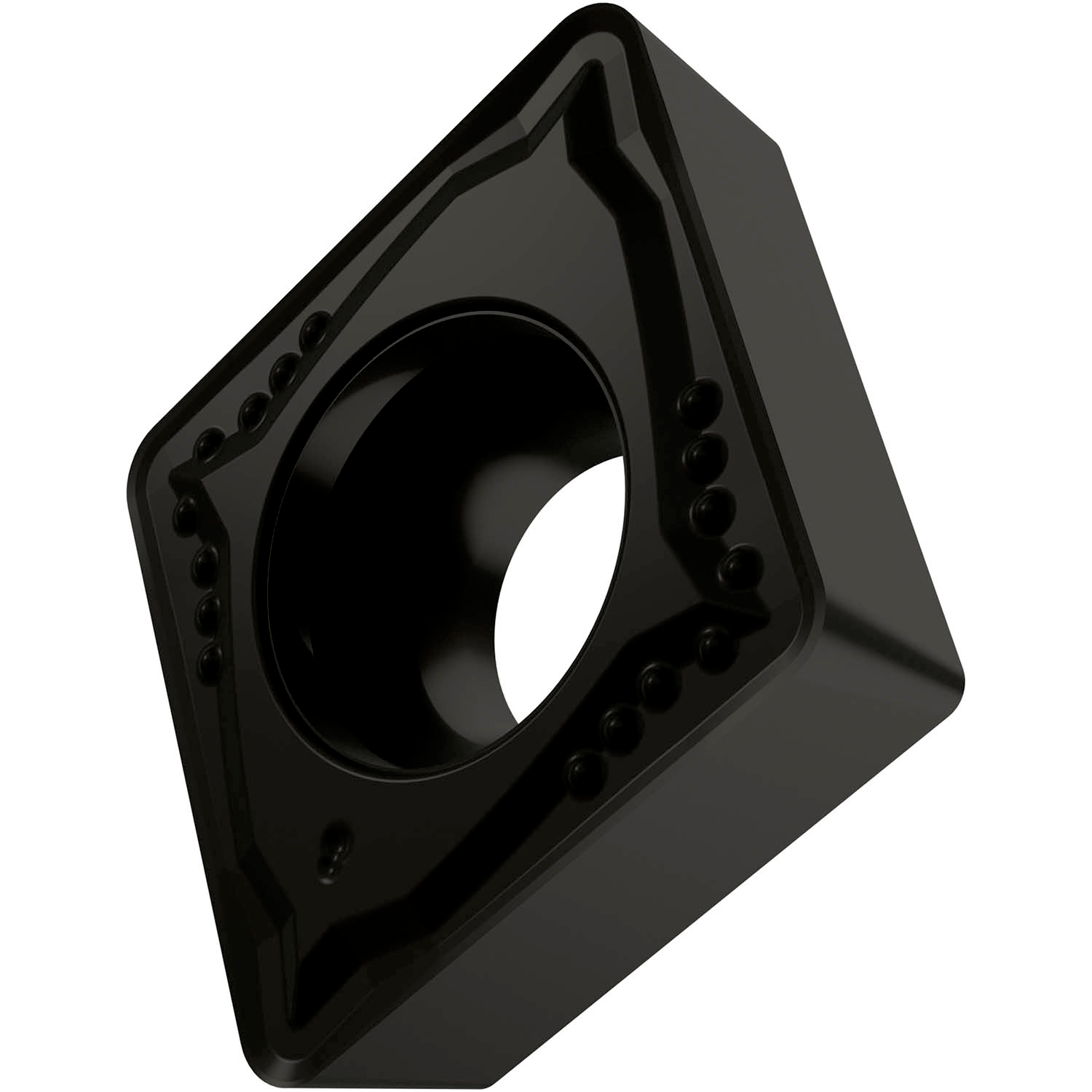

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 9.525 mm, 3.97 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with WIPER edge design, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15 -P35 and M10 -M30, for fine to medium machining of steels and stainless-steels

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7034006
