Dormer-Pramet

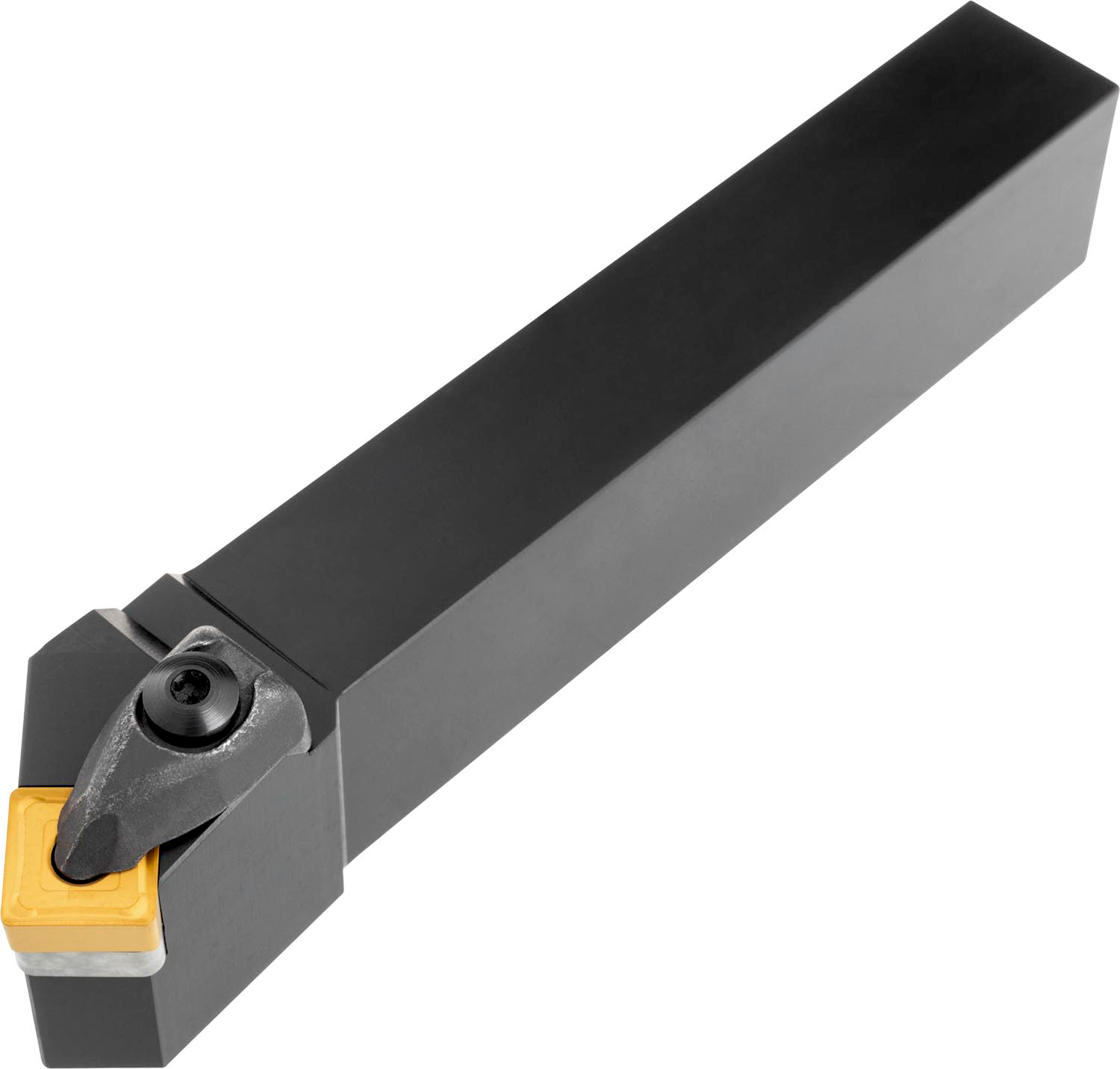

Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 15.875 mm, 6.35 mm thick (ISO designation SN.. 1506.. ), right hand 45° side cutting with off-set shank, 32 mm tool height x 25 mm width x 170 mm long for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7028452
