LNMU 160716SR-R:M9315

LNMU 160716SR-R:M9315

$251.25 CAD $301.50 CAD
Skip to product information
LNMU 160716SR-R:M9315
LNMU 160716SR-R:M9315

Dormer-Pramet

LNMU 160716SR-R:M9315

Material ID: 6941427

$251.25 CAD $301.50 CAD

LNMU 160716SR-R:M9315

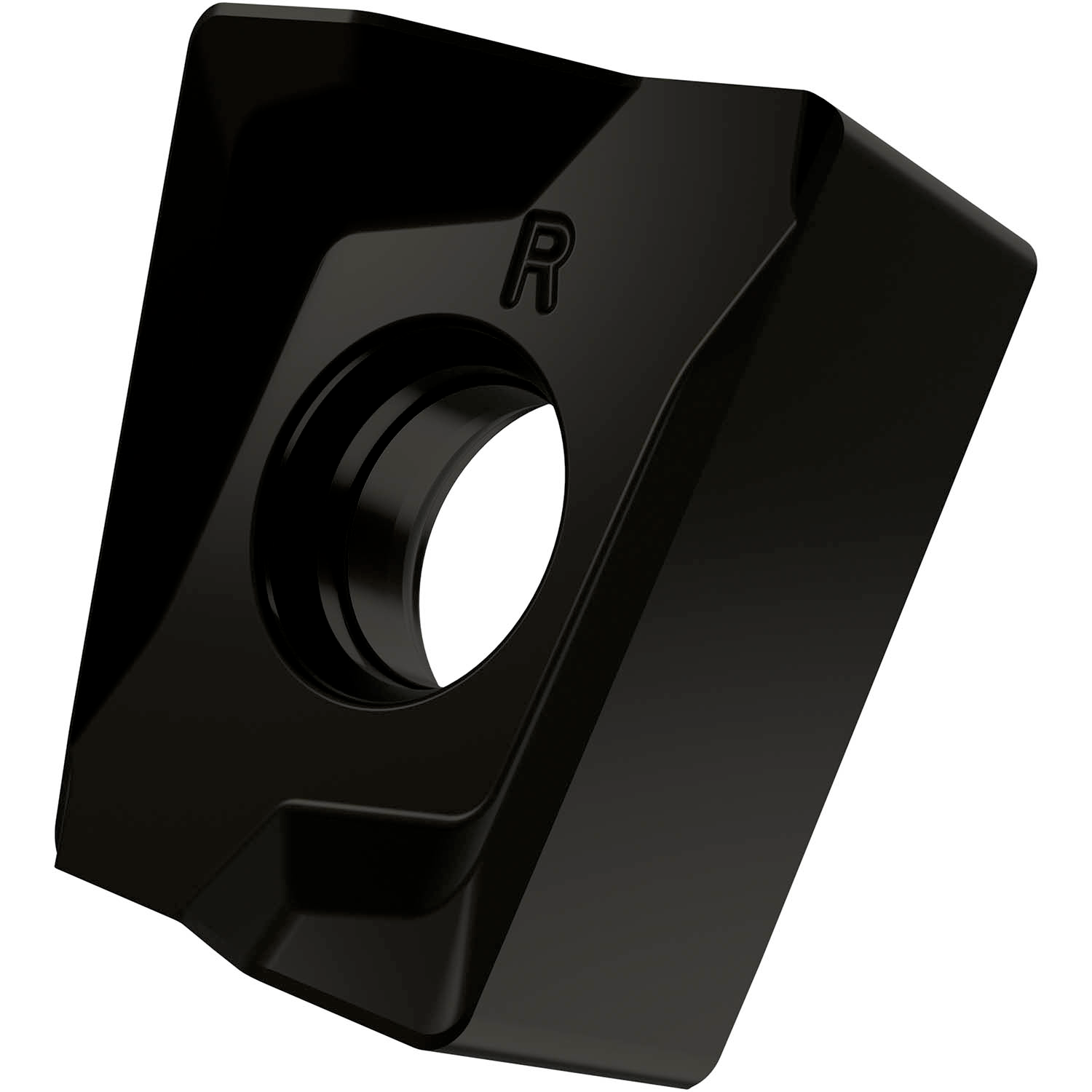

Milling Insert - Square Shoulder

Material ID: 6941427


Double-sided milling insert LN.. 16.. with chip-breakers, rectangular for a maximum depth of cut of 13.0 mm, with 1.6 mm corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M9315 MT-CVD coated WC-Co carbide within ISO-grade ranges P05 -P25 and K10 -K30 for machining of steel and cast-iron with shoulder mills SLN16

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6941427
