Dormer-Pramet

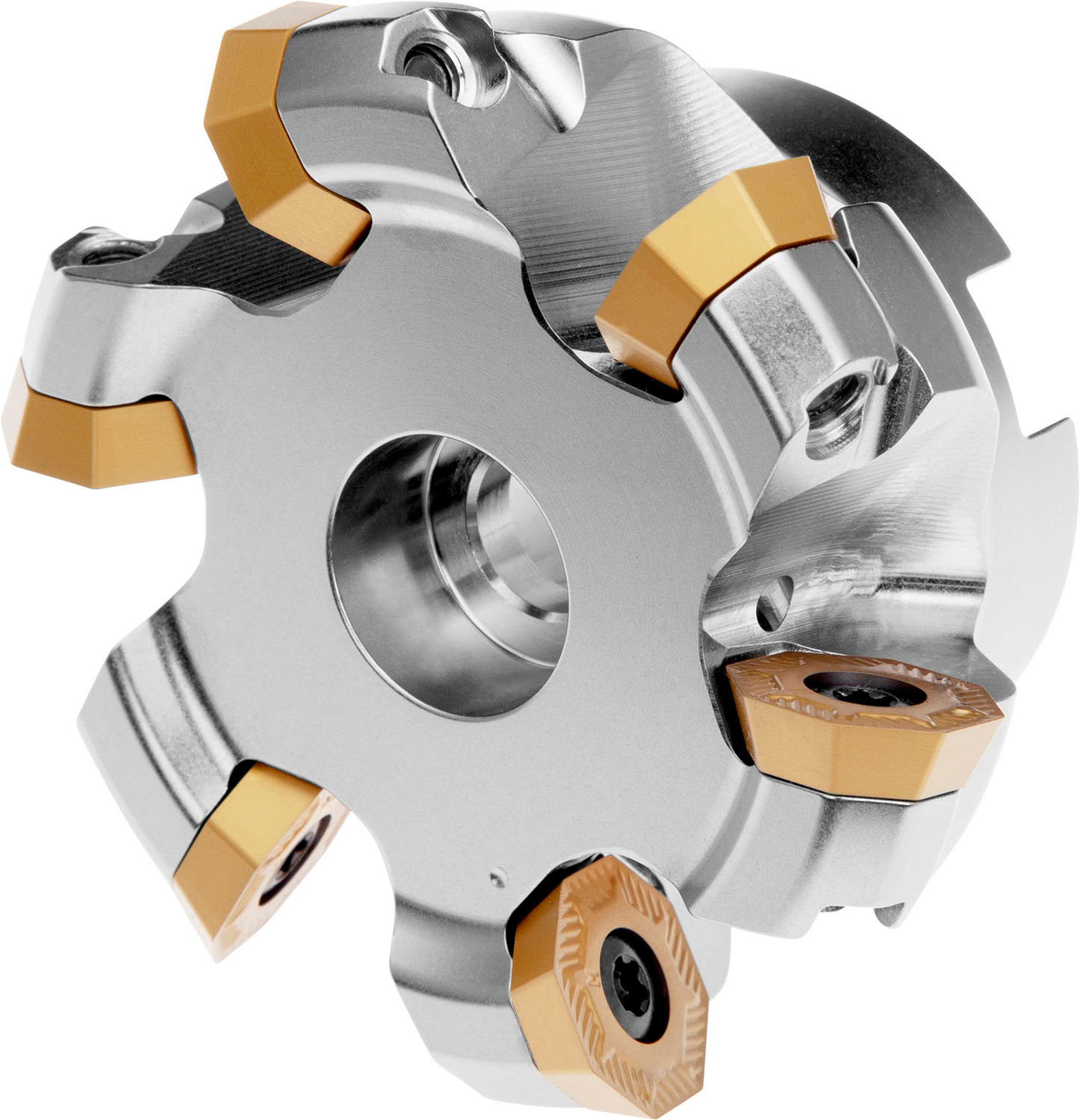

Face mill with double positive geometry which utilises 6 of OE.. 06...., RE.. 16.... or XE.. 06.... single-sided inserts, cutting diameter 63 to maximum 73 mm with 43° approach angle and 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6922501
