Dormer-Pramet

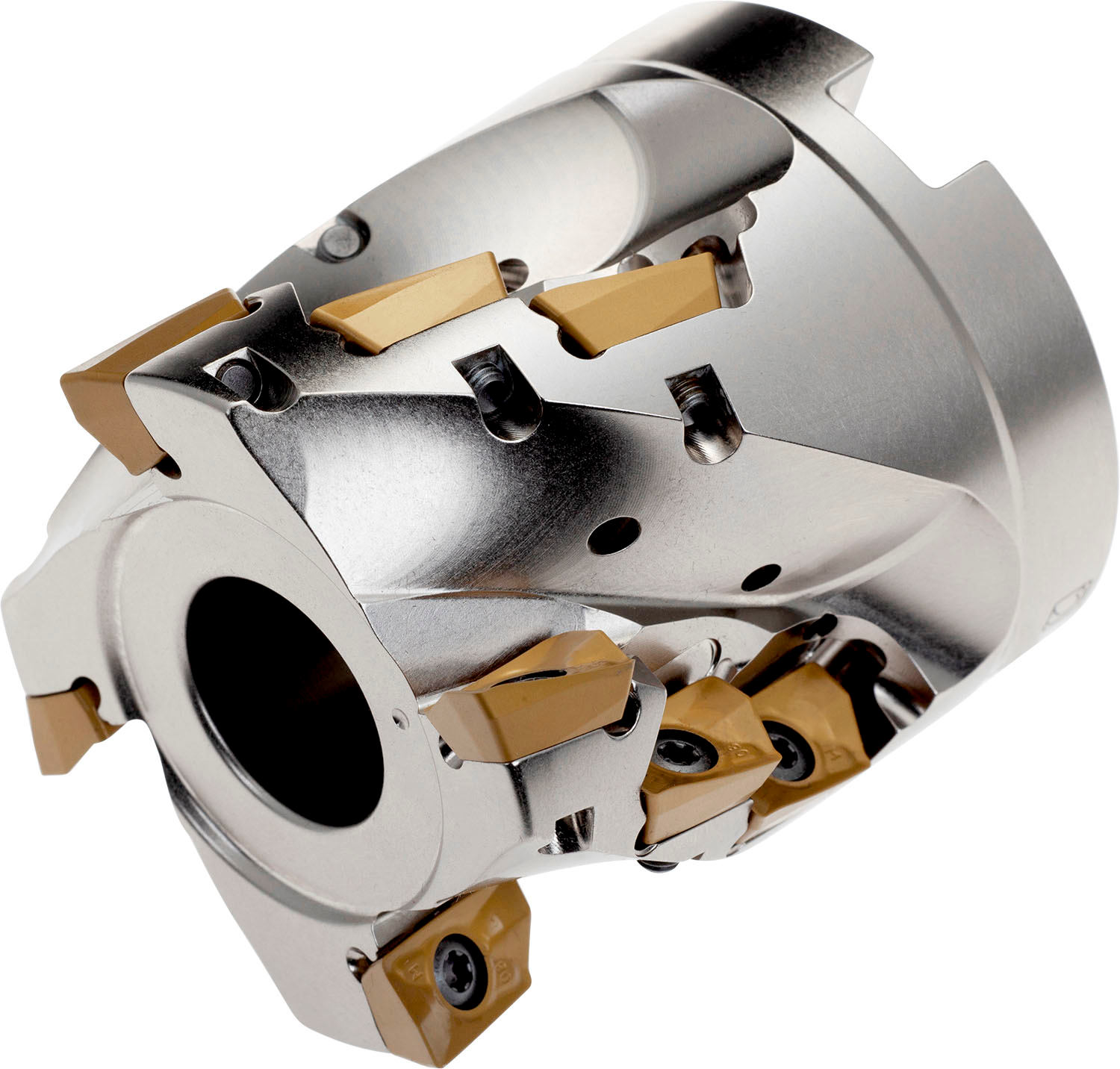

Shoulder mill with extended flute with positve/negative geometry which utilises 12 of AD.. 16.. or AD.. 16.. single-sided inserts, cutting diameter 63 mm with 90° approach angle and 27 mm connection bore according to DIN 8030, 40 mm functional and 70 mm protrusion length, through coolant and differential pitch for deep shoulder milling and deep slot milling with a maximum depth of cut of 40 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6922416
