Dormer-Pramet

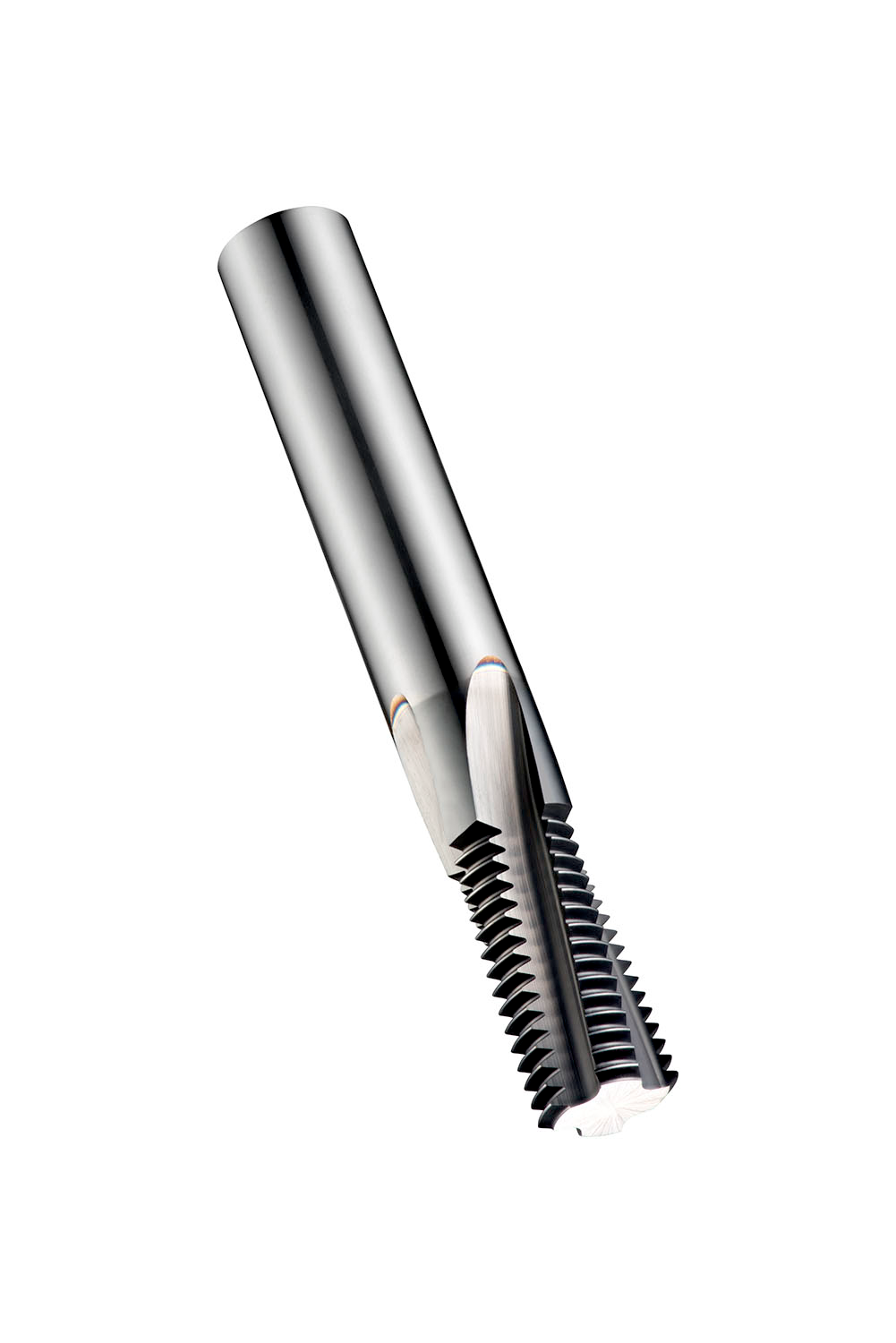

Thread milling cutter, for British Standard Pipe thread ? G 3/8 inch with 19 TPI, dimensions according to Dormer Pramet standard with 5 flutes, 14 mm cutting diameter and 14 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 26 mm long right or left hand internal and external thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6821352
