Dormer-Pramet

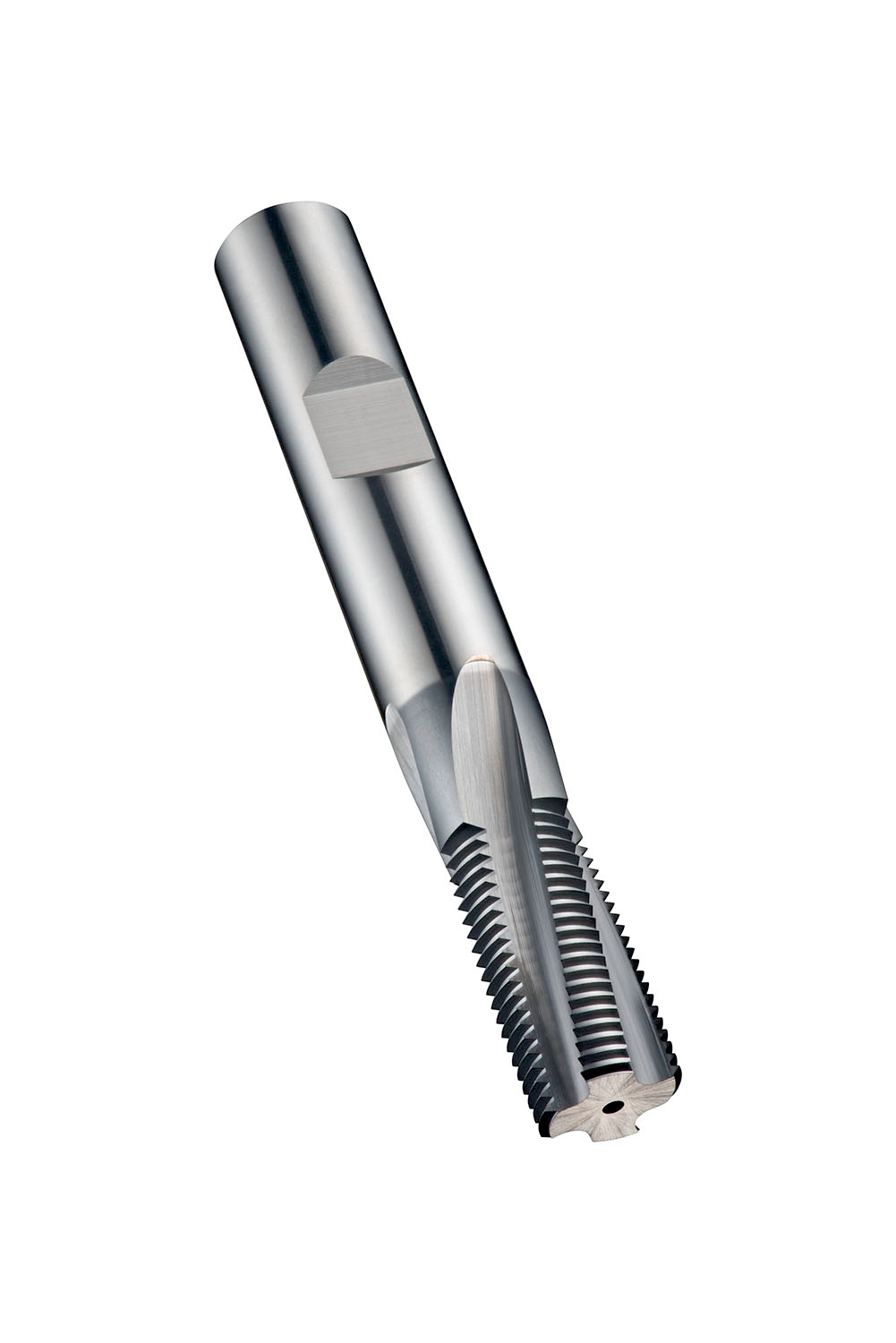

Thread milling cutter, for Unified National Fine thread ? UNF 1/4 inch with 28 TPI, dimensions according to Dormer Pramet standard with 3 flutes, 4.8 mm cutting diameter and 6 mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 14 mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6821344
