Dormer-Pramet

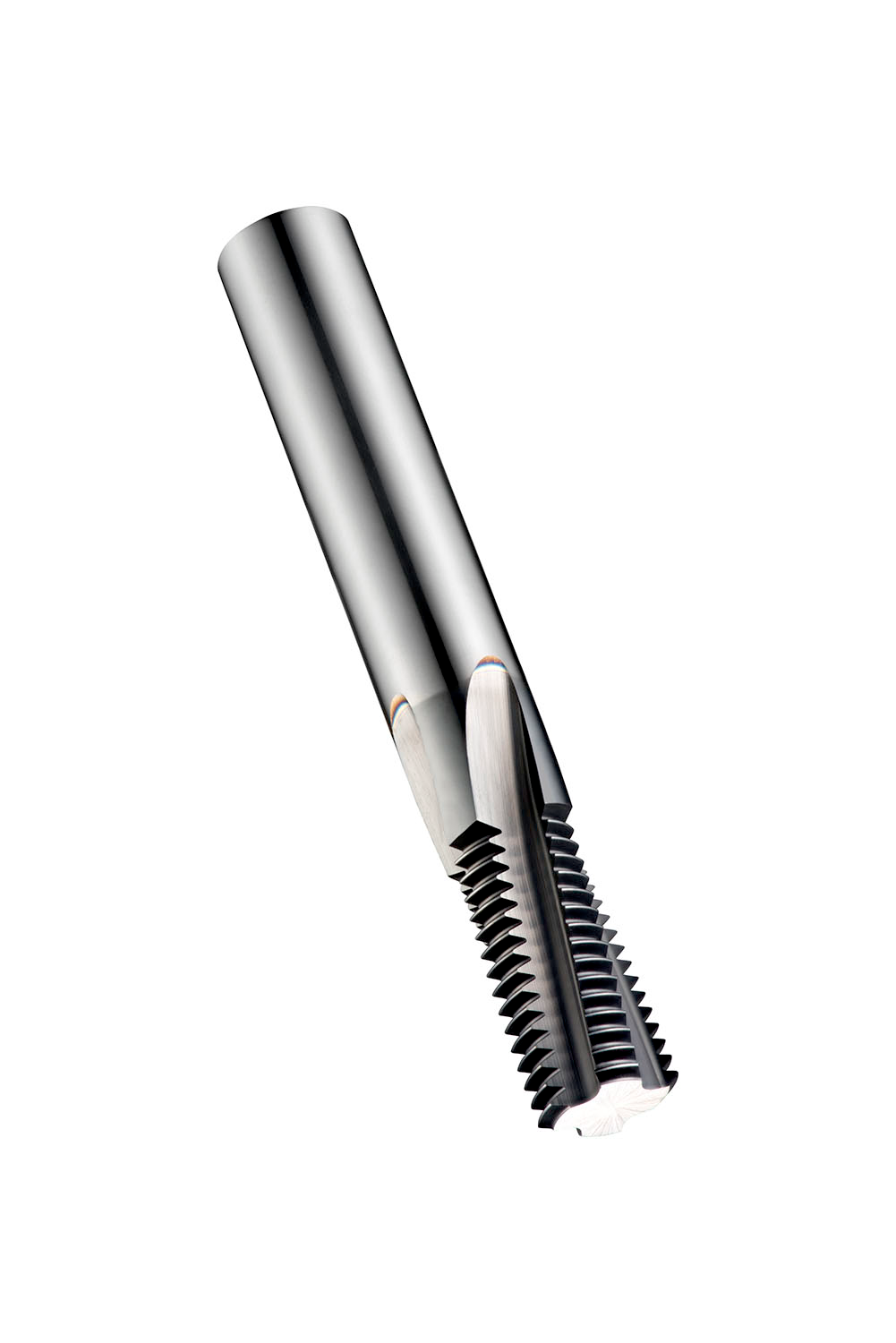

Thread milling cutter, for ISO-Metric Fine thread ? M14 with 1.00 mm pitch, dimensions according to Dormer Pramet standard with 4 flutes, 12 mm cutting diameter and 12 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 22 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6821314
