J2106.0X1.25

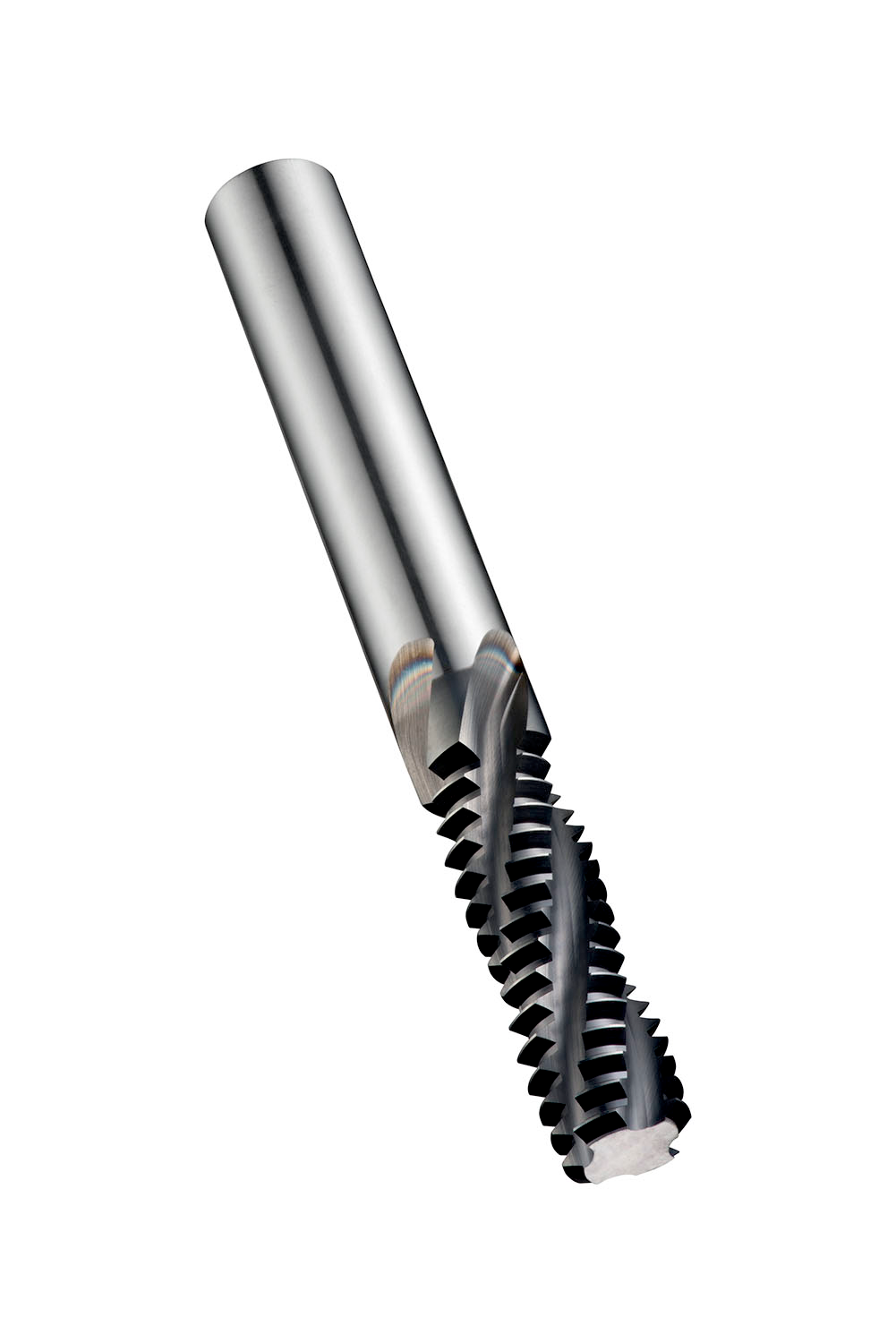

M Thread Mill Spiral Flute 27°

Material ID: 6821303


Thread milling cutter, for ISO-Metric thread ? M8 with 1.25 mm pitch, dimensions according to Dormer Pramet standard with 3 flutes, 6 mm cutting diameter and 6 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 27° helix angle for milling a maximum of 17.5 mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, chilled cast-iron

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6821303
