Dormer-Pramet

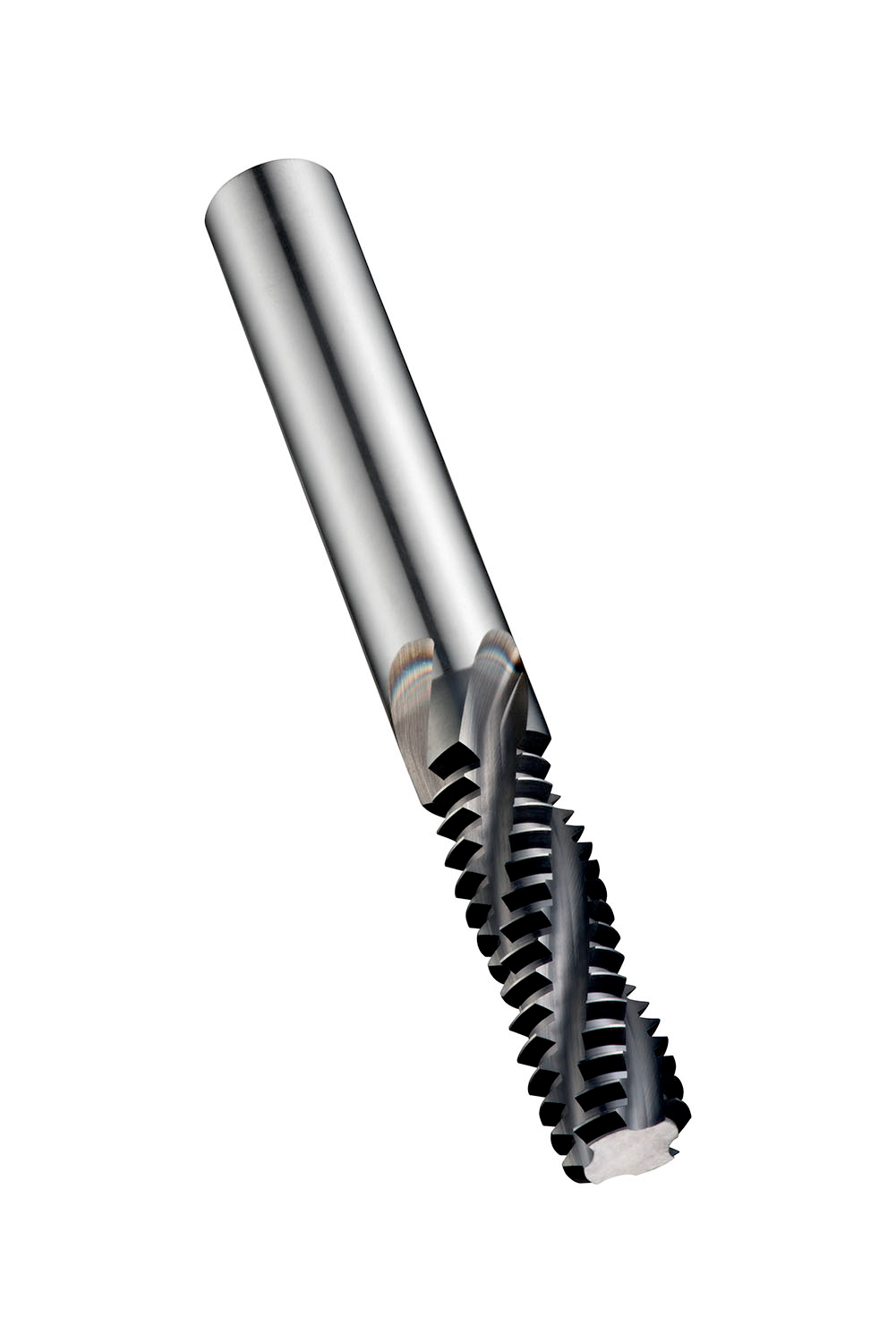

Thread milling cutter, for ISO-Metric thread ? M6 with 1.00 mm pitch, dimensions according to Dormer Pramet standard with 3 flutes, 4.5 mm cutting diameter and 6 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 27° helix angle for milling a maximum of 13 mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, chilled cast-iron

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6821302
