Dormer-Pramet

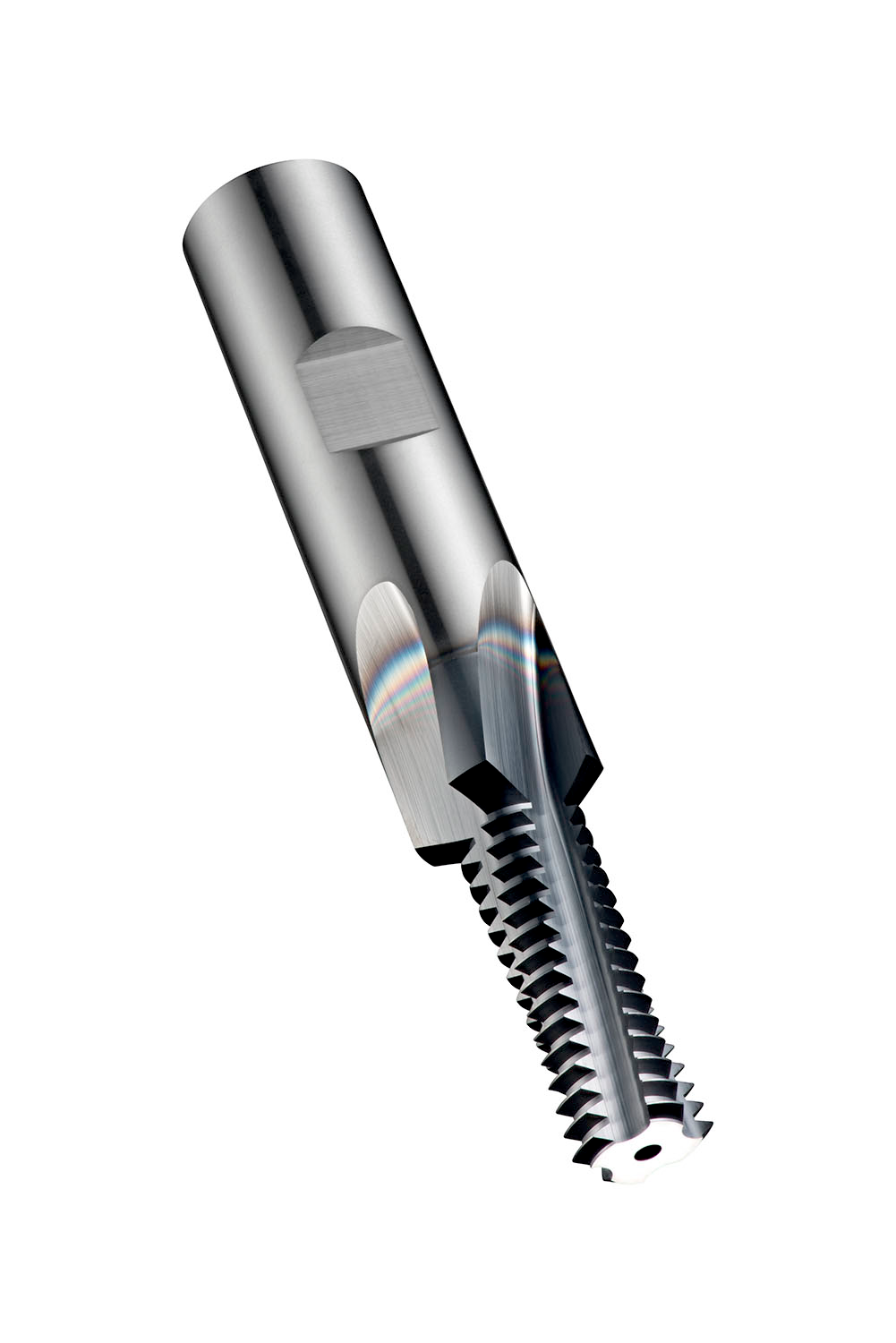

Thread and chamfer milling cutter, for ISO-Metric thread ? M14 with 2.00 mm pitch, dimensions according to Dormer Pramet standard with 4 flutes, 11.6 mm cutting diameter and 16 mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 30 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals and titanium or titanium alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6821295
