Dormer-Pramet
J2009.9X1.75
Material ID: 6821294
Sale price
$345.00 CAD
Regular price
$414.00 CAD
J2009.9X1.75

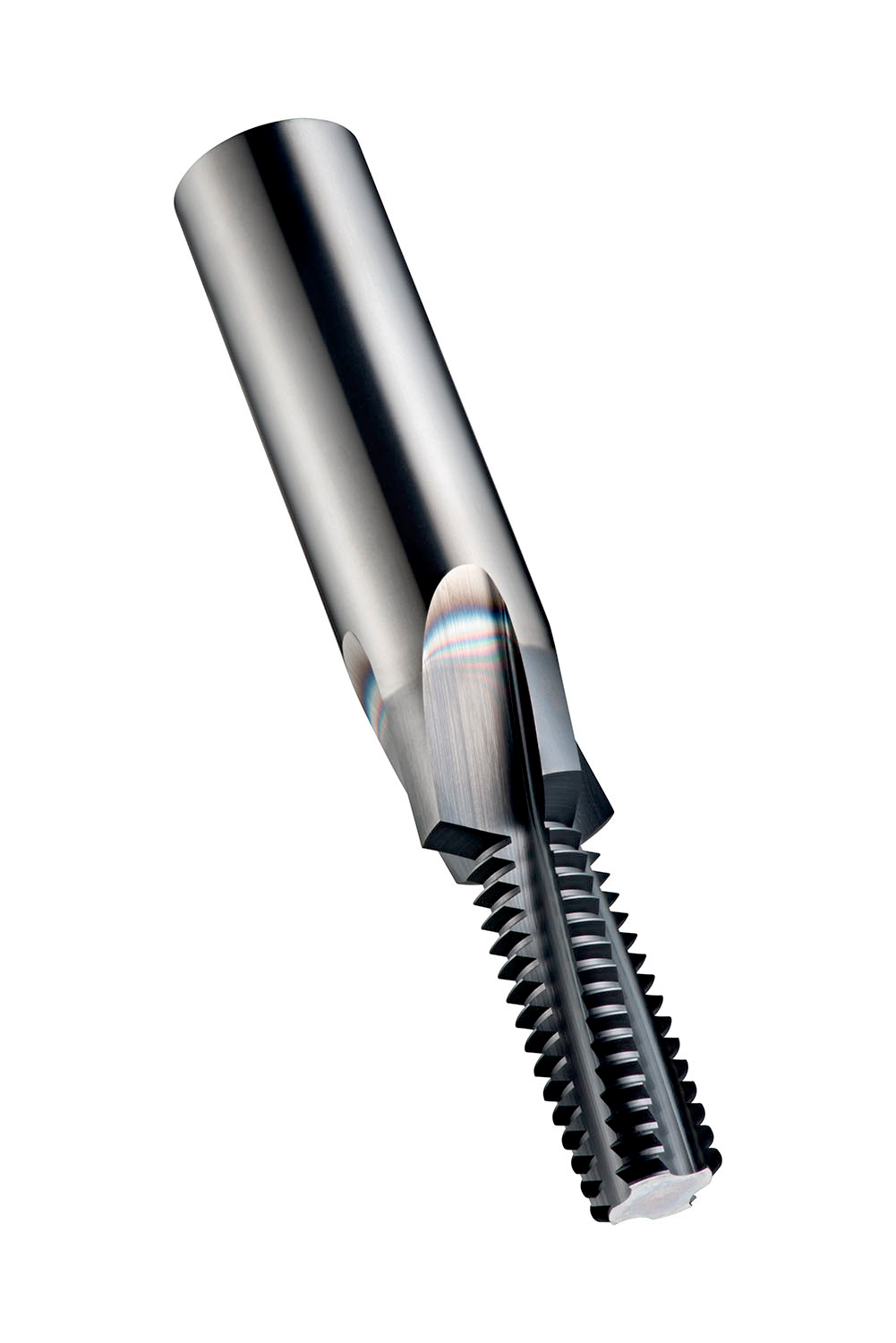

M Thread Mill Spiral Flute 10°
Material ID: 6821294
Thread and chamfer milling cutter, for ISO-Metric thread ? M12 with 1.75 mm pitch, dimensions according to Dormer Pramet standard with 4 flutes, 9.9 mm cutting diameter and 14 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 26.25 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and non-ferrous metals
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
