Dormer-Pramet
J2003.2X.7
Material ID: 6821169
Sale price
$148.33 CAD
Regular price
$178.00 CAD
J2003.2X.7

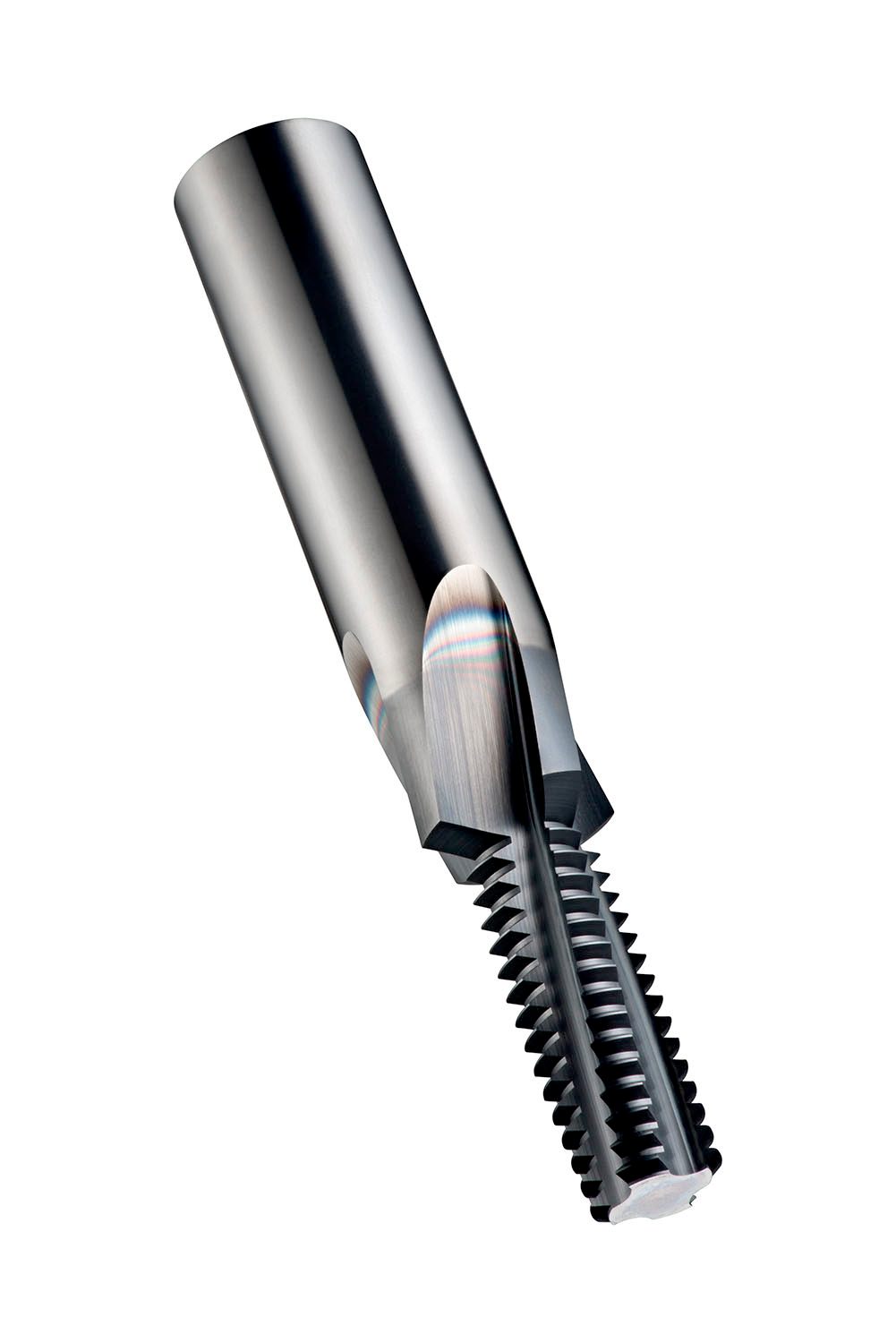

M Thread Mill Spiral Flute 10°
Material ID: 6821169
Thread and chamfer milling cutter, for ISO-Metric thread ? M4 with 0.70 mm pitch, dimensions according to Dormer Pramet standard with 3 flutes, 3.2 mm cutting diameter and 6 mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 8.4 mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and non-ferrous metals
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
