Dormer-Pramet
803D-18-54-S25
Material ID: 6820797
Sale price
$638.75 CAD
Regular price
$657.00 CAD
803D-18-54-S25

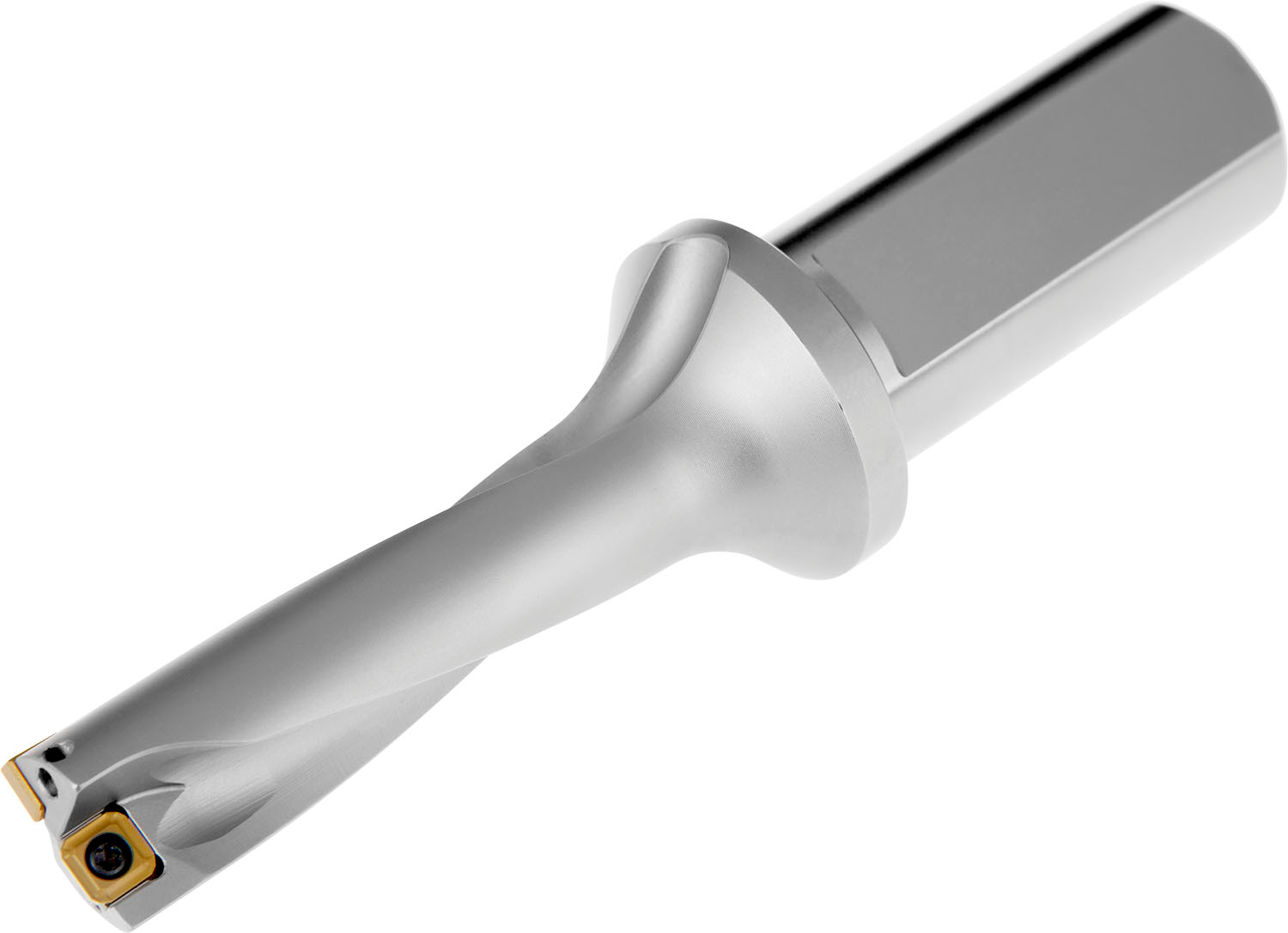

Indexable Drill 3 x D
Material ID: 6820797
Indexable insert drill which utilises an XP.. 06.... insert in the central pocket and a SC.. 05.... insert in the peripheral pocket, cutting diameter 18 mm in combination with EP253253, suited for a radial adjustment of -0.35 to +0.25 mm, with a 25 mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 3 x D
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
