LNET 160616SR-R:M8340

LNET 160616SR-R:M8340

$300.00 CAD $360.00 CAD
Skip to product information
LNET 160616SR-R:M8340
LNET 160616SR-R:M8340

Dormer-Pramet

LNET 160616SR-R:M8340

Material ID: 6801306

$300.00 CAD $360.00 CAD

LNET 160616SR-R:M8340

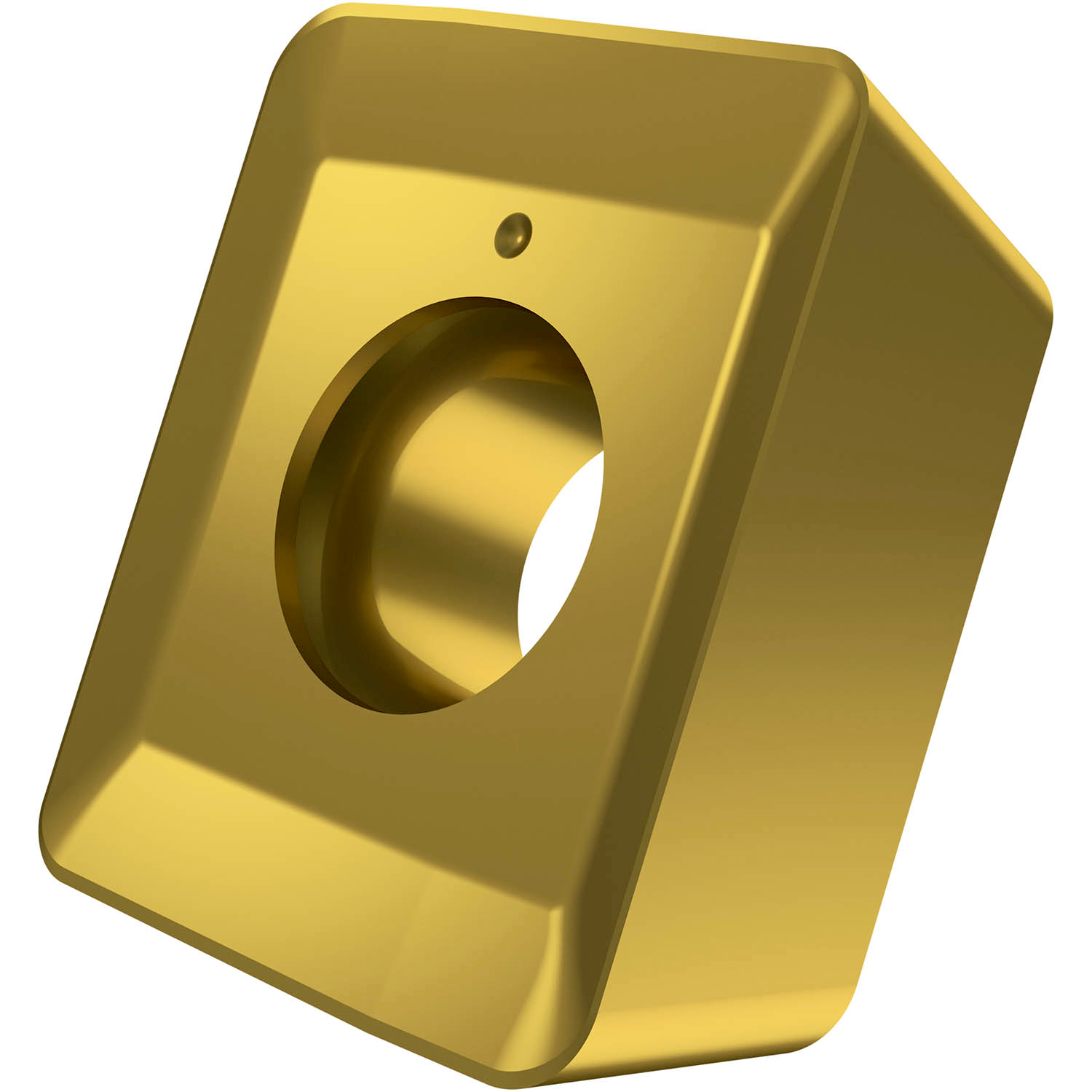

Milling Insert - Heavy Duty

Material ID: 6801306


Single-sided milling insert LN.. 16.. with chip-breakers, rectangular for a maximum depth of cut of 15.0 mm, with 1.6 mm corner radius, an indexing accuracy according to ISO-tolerance class-E and R geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25 -P50 for machining of steel with shoulder mills with extended flute J(T)-SLSN

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6801306
