Dormer-Pramet

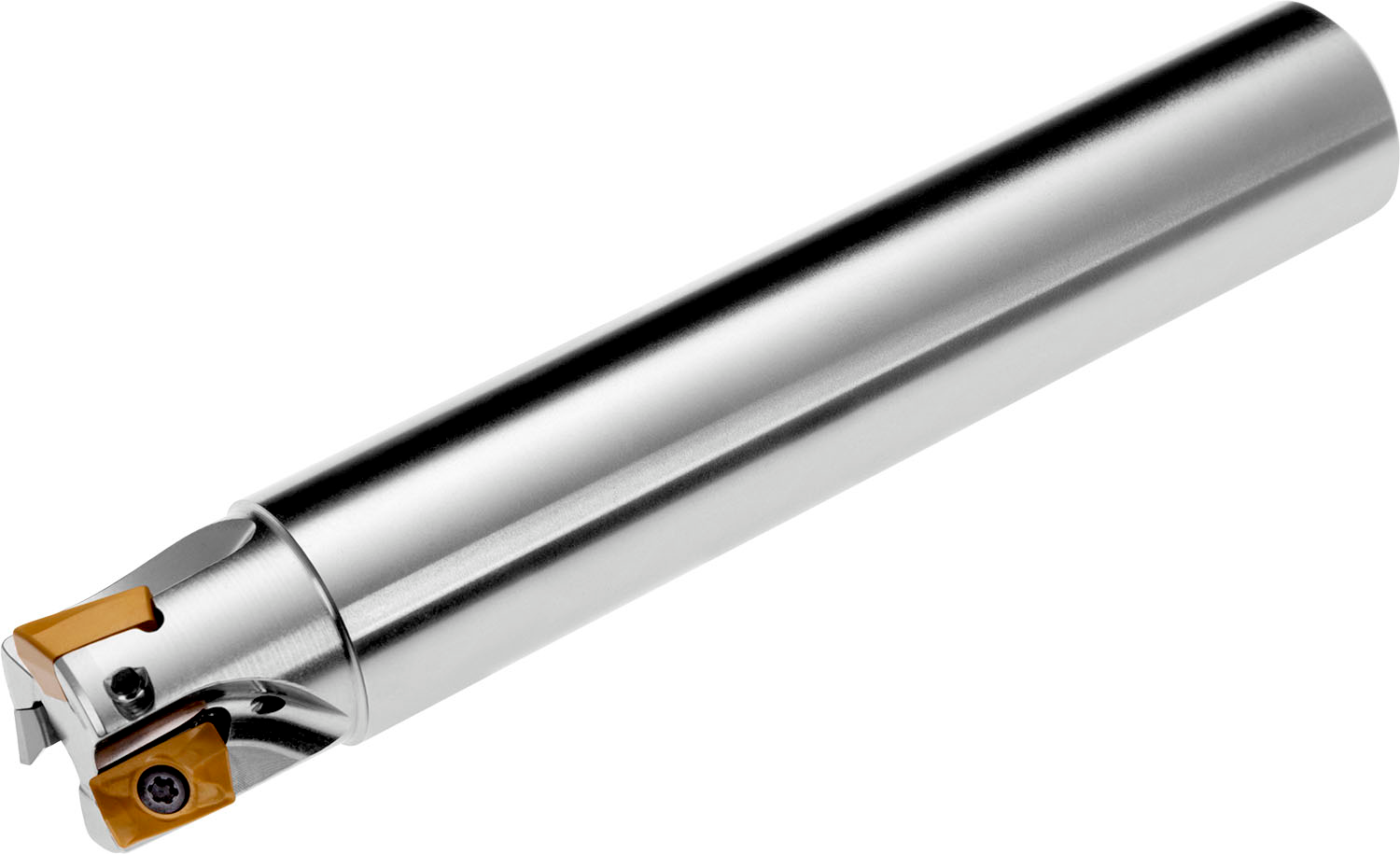

Shoulder mill with positve/negative geometry which utilises 3 of AD.. 16.... or AD.. 16.... single-sided inserts, cutting diameter 32 mm with 90° approach angle and 32 mm parallel shank according to DIN 1835A, 48 mm functional and 250 mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6800794
