Dormer-Pramet

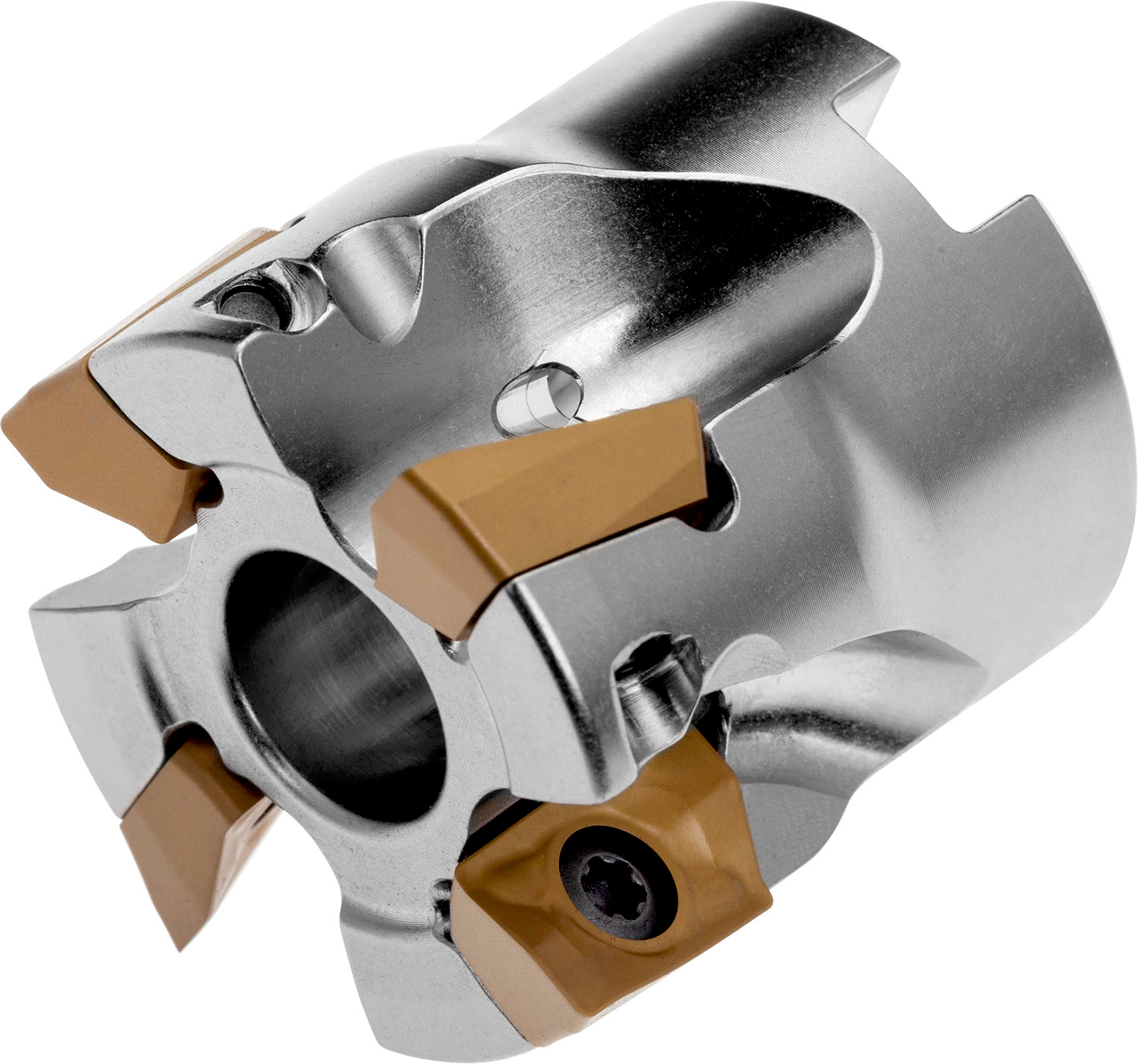

Shoulder mill with positve/negative geometry which utilises 3 of AD.. 16.... or AD.. 16.... single-sided inserts, cutting diameter 2.000 inch with 90° approach angle and .750 inch connection bore according to DIN 8030-A, 1.575 inch protrusion length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .512 inch

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6798483
