Dormer-Pramet

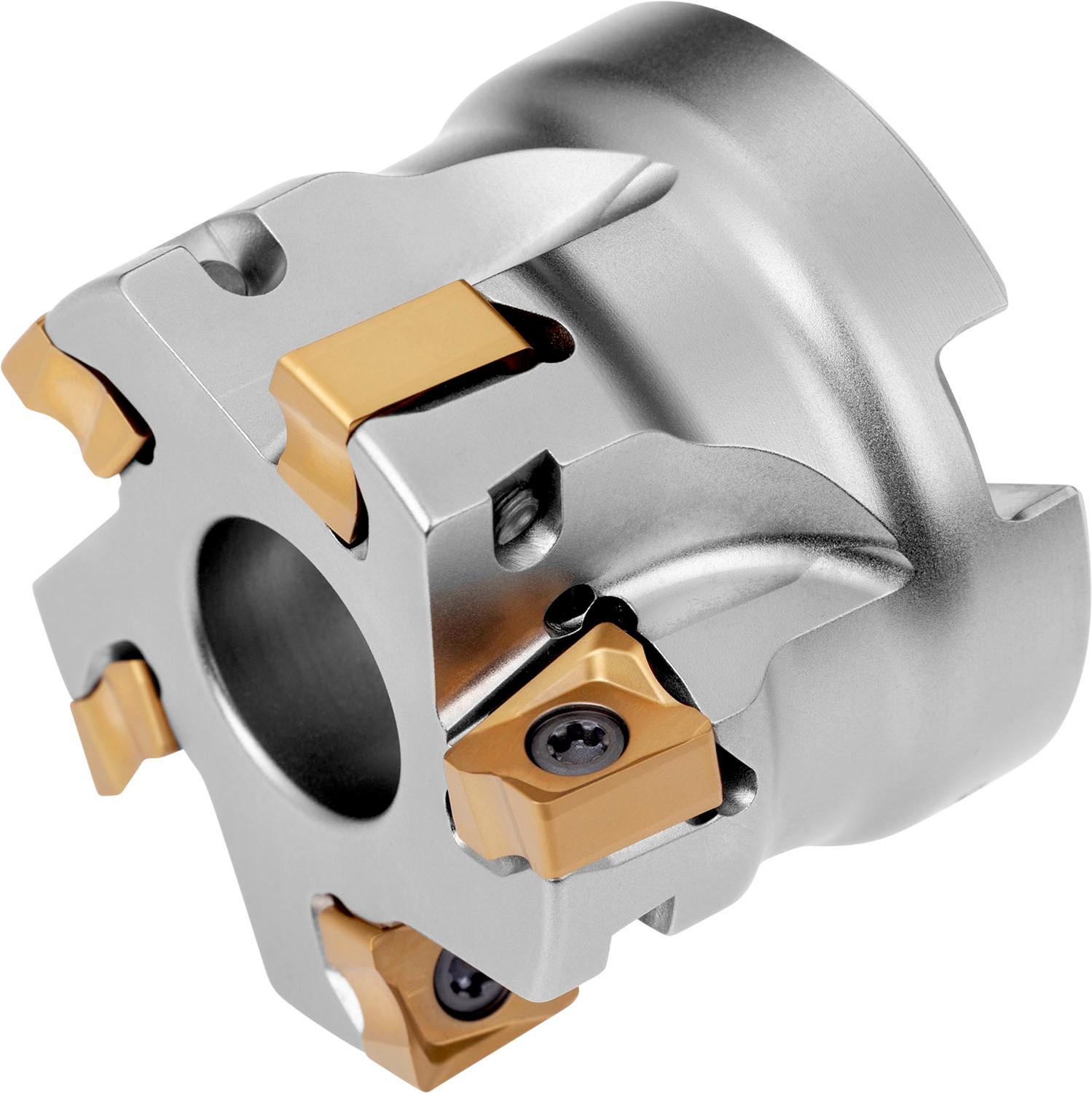

Shoulder mill with double negative geometry which utilises 8 of LN.. 12.... or LN.. 12.... double-sided inserts, cutting diameter 4.000 inch with 90° approach angle and 1.500 inch connection bore according to DIN 8030-A, 1.969 inch protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of .354 inch

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6793024
