Dormer-Pramet

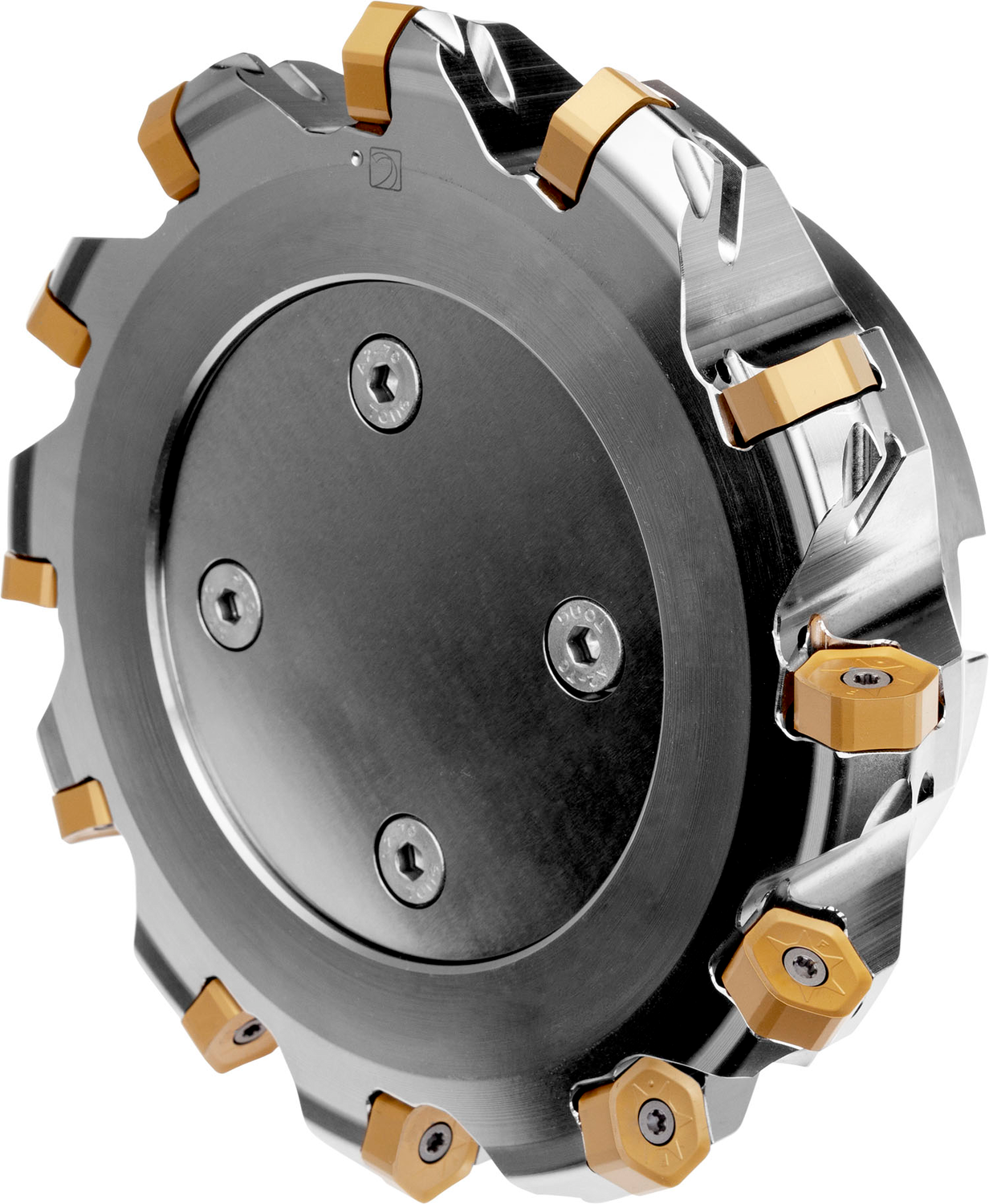

Face mill with double negative geometry which utilises 12 off HNGX 0906AN.. or XNGX 0906AN.. double-sided inserts, cutting diameter 6.000 to maximum 6.461'' with 45° approach angle and 2.000'' connection bore according to DIN 8030-B, 2.480'' protrusion length, through coolant for face milling, ramping, progressive plunge milling and chamfering with a maximum depth of cut of .197''

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centres, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6790771
