Dormer-Pramet

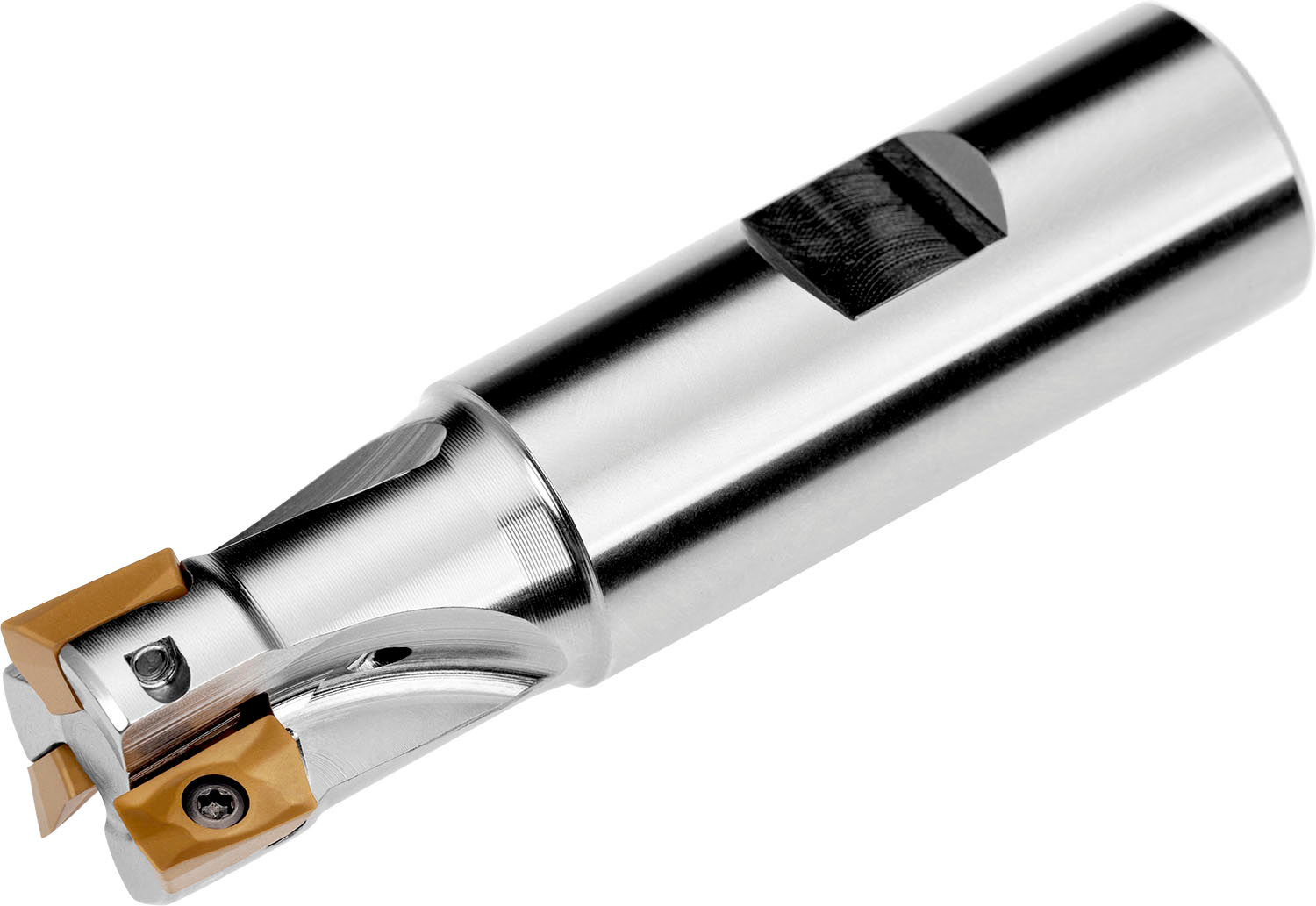

Shoulder mill with positve/negative geometry which utilises 3 of AD.. 11.... or AD.. 11.... single-sided inserts, cutting diameter 1.000 inch with 90° approach angle and 1.000 inch Weldon shank according to DIN 1835B, 1.280 inch functional and 3.780 inch overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .354 inch

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6790704
