400A08R-IS45SE09F-C

400A08R-IS45SE09F-C

$1,041.25 CAD $1,071.00 CAD
Skip to product information
400A08R-IS45SE09F-C
400A08R-IS45SE09F-C

Dormer-Pramet

400A08R-IS45SE09F-C

Material ID: 6789741

$1,041.25 CAD $1,071.00 CAD

400A08R-IS45SE09F-C

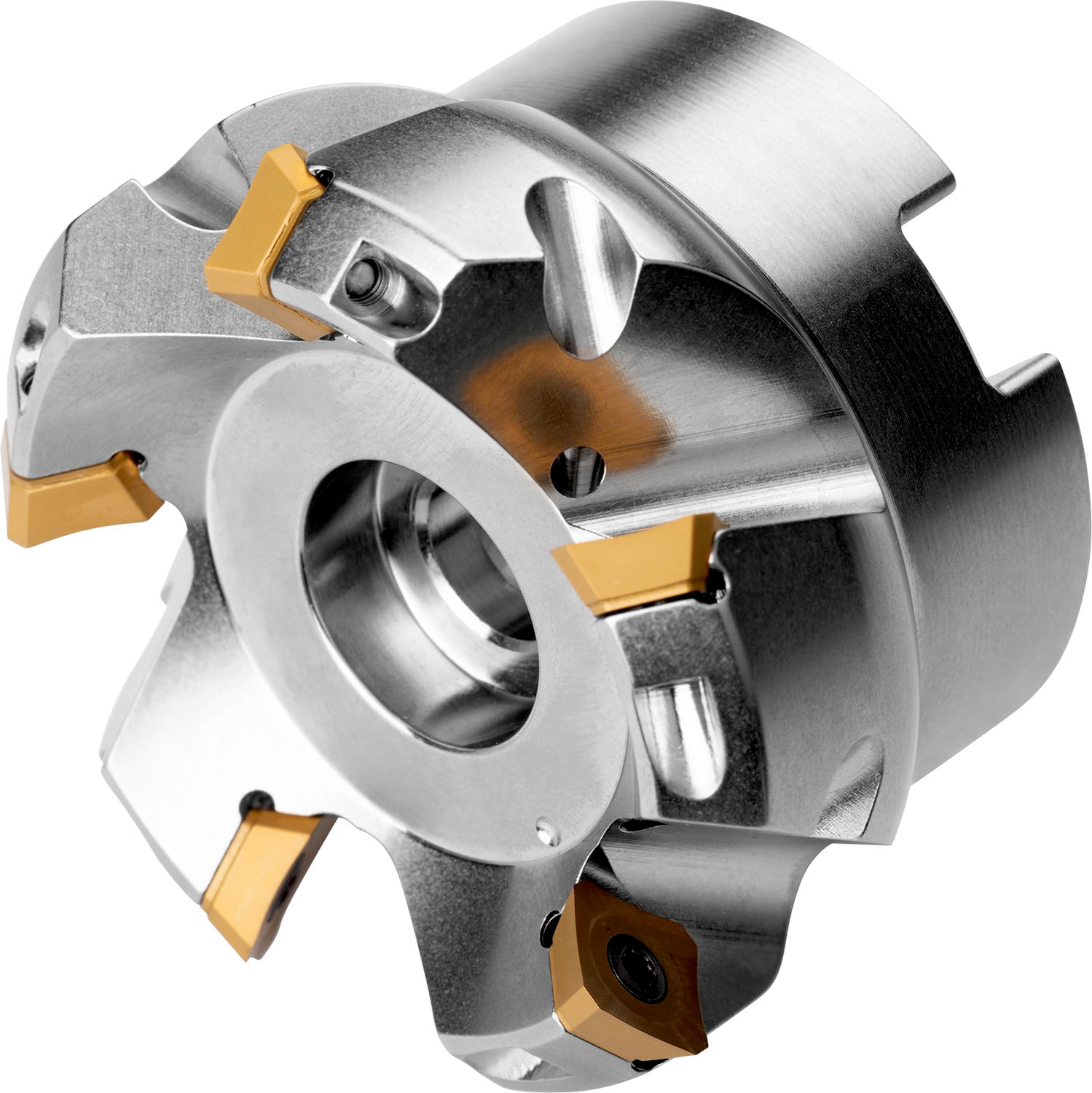

Shell Milling Cutter - Face

Material ID: 6789741


Face mill with positve/negative geometry which utilises 8 of SE.. 09.... or SE.. 09.... single-sided inserts, cutting diameter 4.000 inch with 45° approach angle and 1.500 inch connection bore according to DIN 8030-A, 1.969 inch protrusion length, through coolant for face milling and chamfering with a maximum depth of cut of .177 inch

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6789741
