Dormer-Pramet

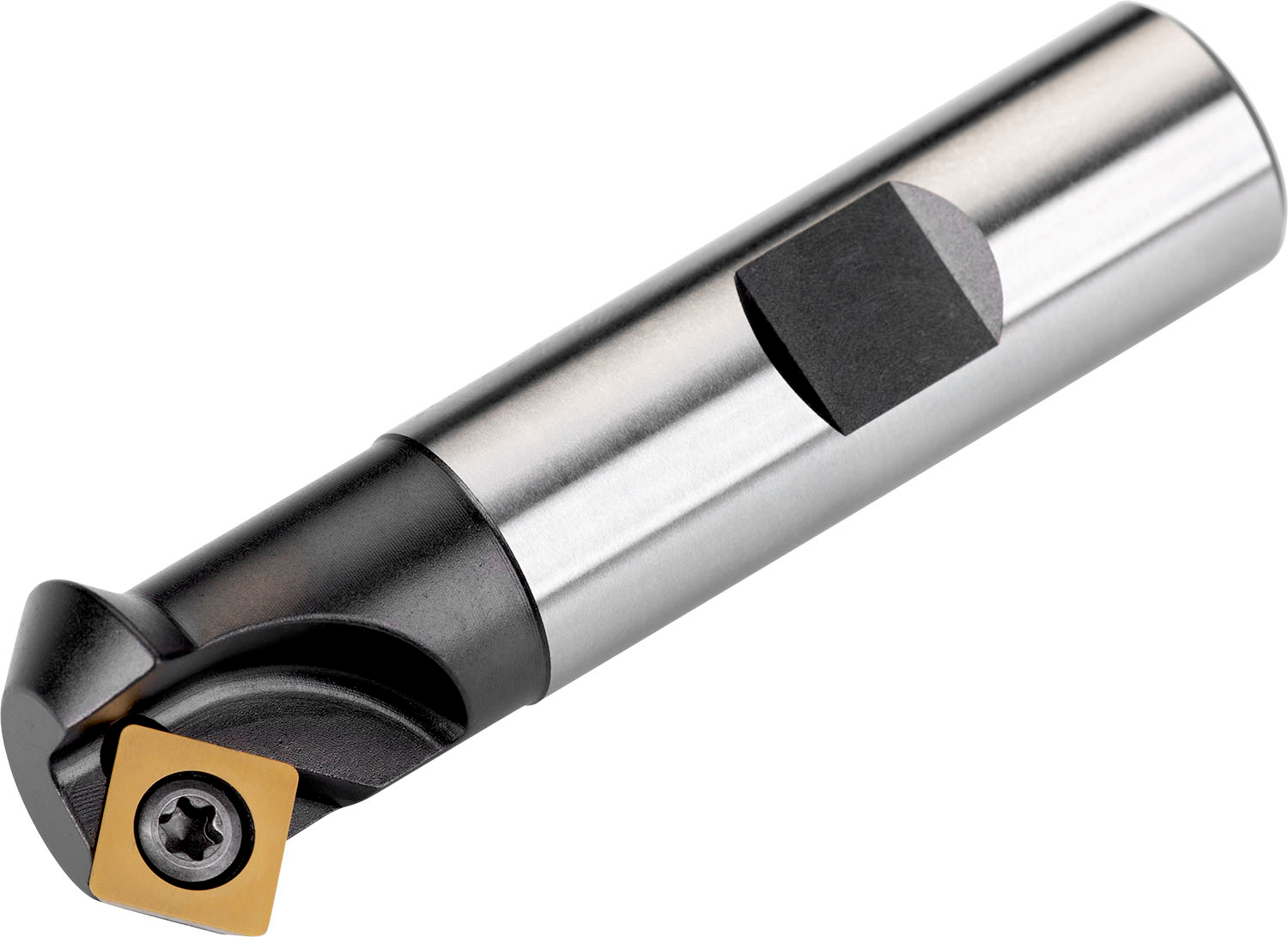

Chamfer mill with double negative geometry which utilises 2 of SD.. 09.... or SD.. 09.... single-sided inserts, cutting diameter .625 inch with 45° approach angle and .625 inch Weldon shank according to DIN 1835B, 2.969 inch overall length for chamfering with a maximum depth of cut of .177 inch

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6789708
