Dormer-Pramet

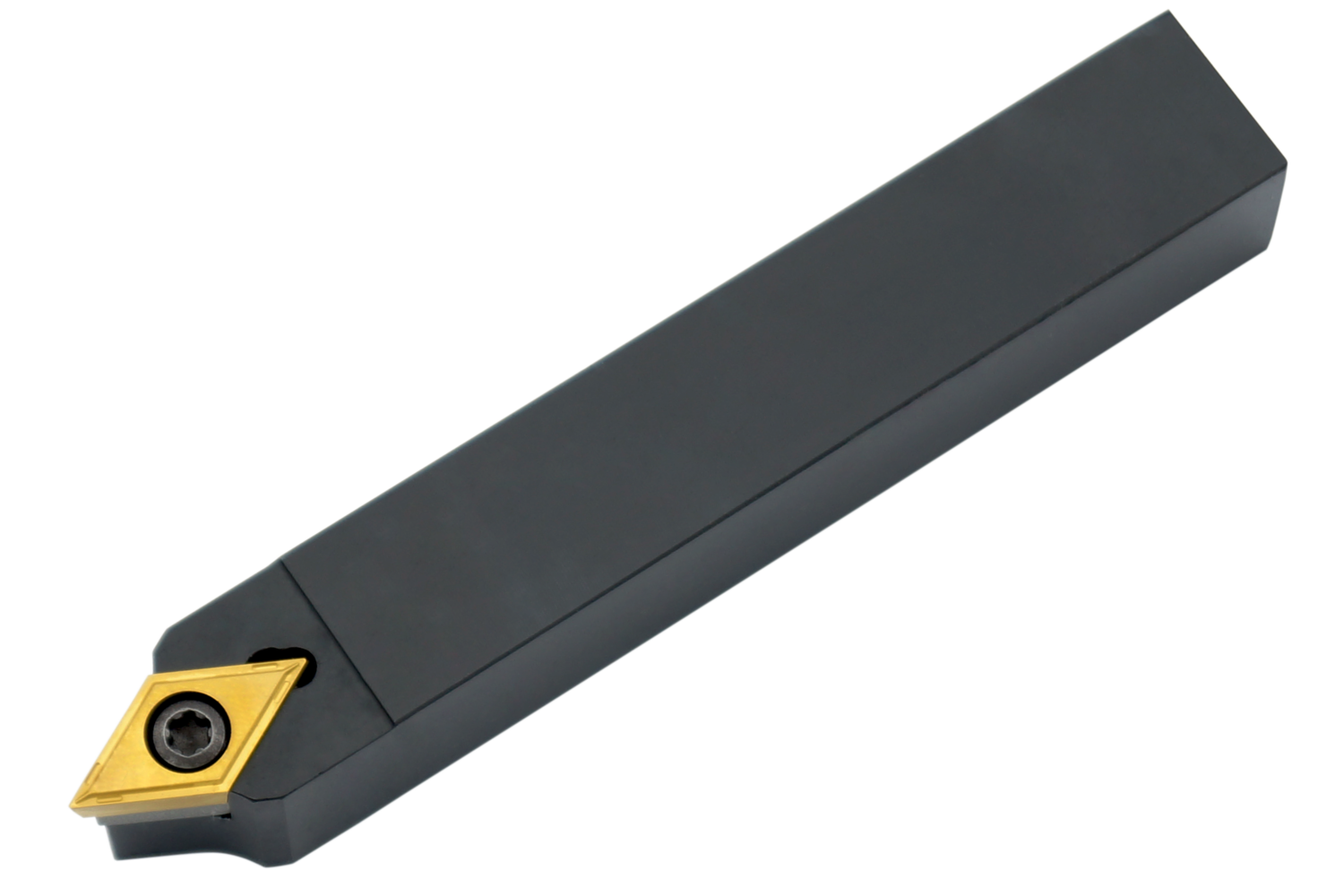

Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 3/8'', 5/32'' thick (ANSI designation DC.. 32.5. ), neutral hand 62.5°, left and right side cutting, 5/8'' tool height x 5/8'' width x 4'' long for single and multi-directional copy turning

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6788671
