Dormer-Pramet

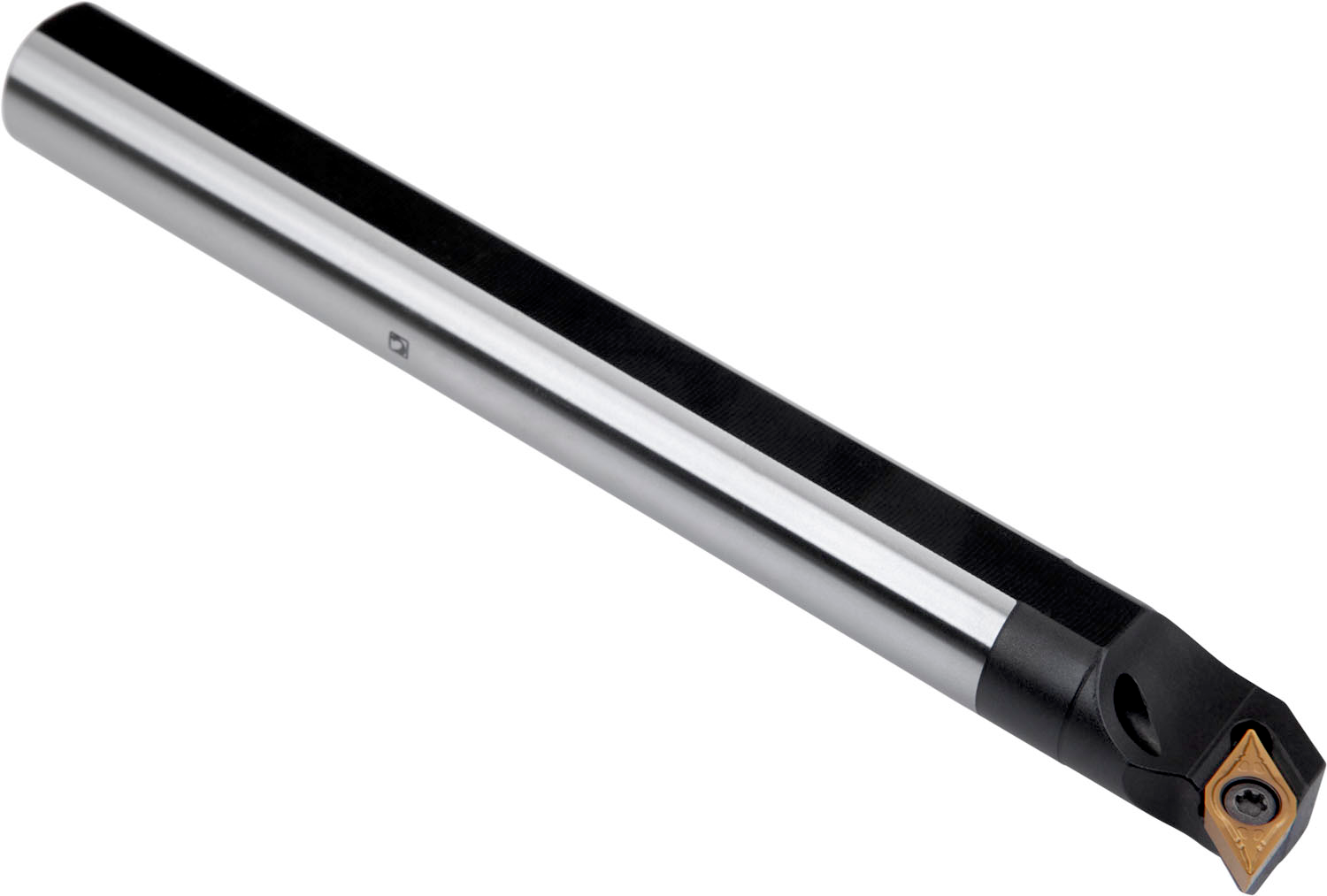

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 3/8'', 5/32'' thick (ANSI designation DC.. 32.5. ), left hand 93° end cutting with off-set shank, steel with coolant hole, 1'' diameter x 12'' long for taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6788488
