Dormer-Pramet

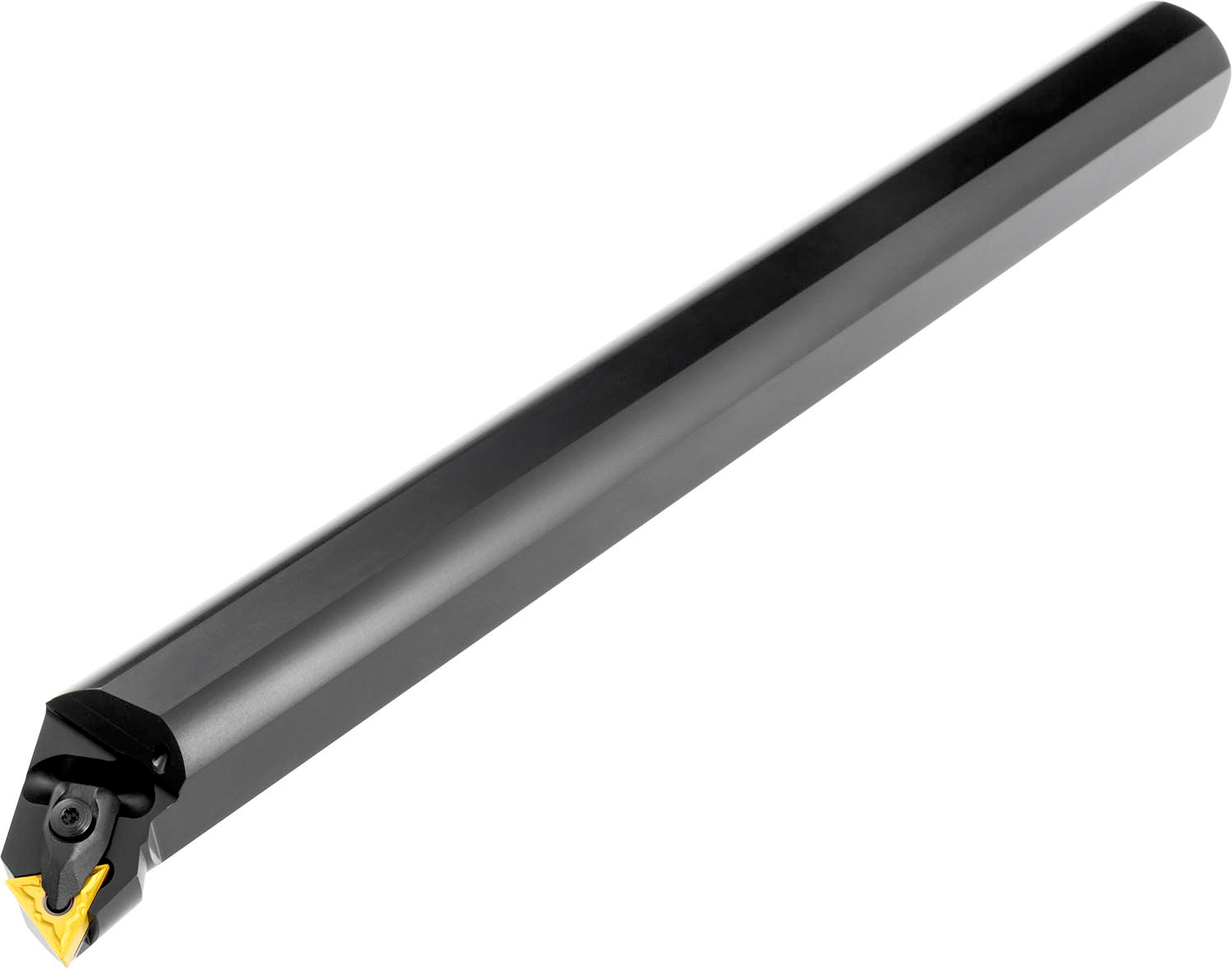

Double clamp boring bar for holding a triangular negative insert with an inscribed circle diameter of 3/8'', 3/16'' thick (ANSI designation TN.. 33. ), right hand 90° end cutting with off-set shank, steel with coolant hole, 1'' diameter x 12'' long for internal chamfering, taper boring and longitudinal boring without shoulder

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6788481
