Dormer-Pramet

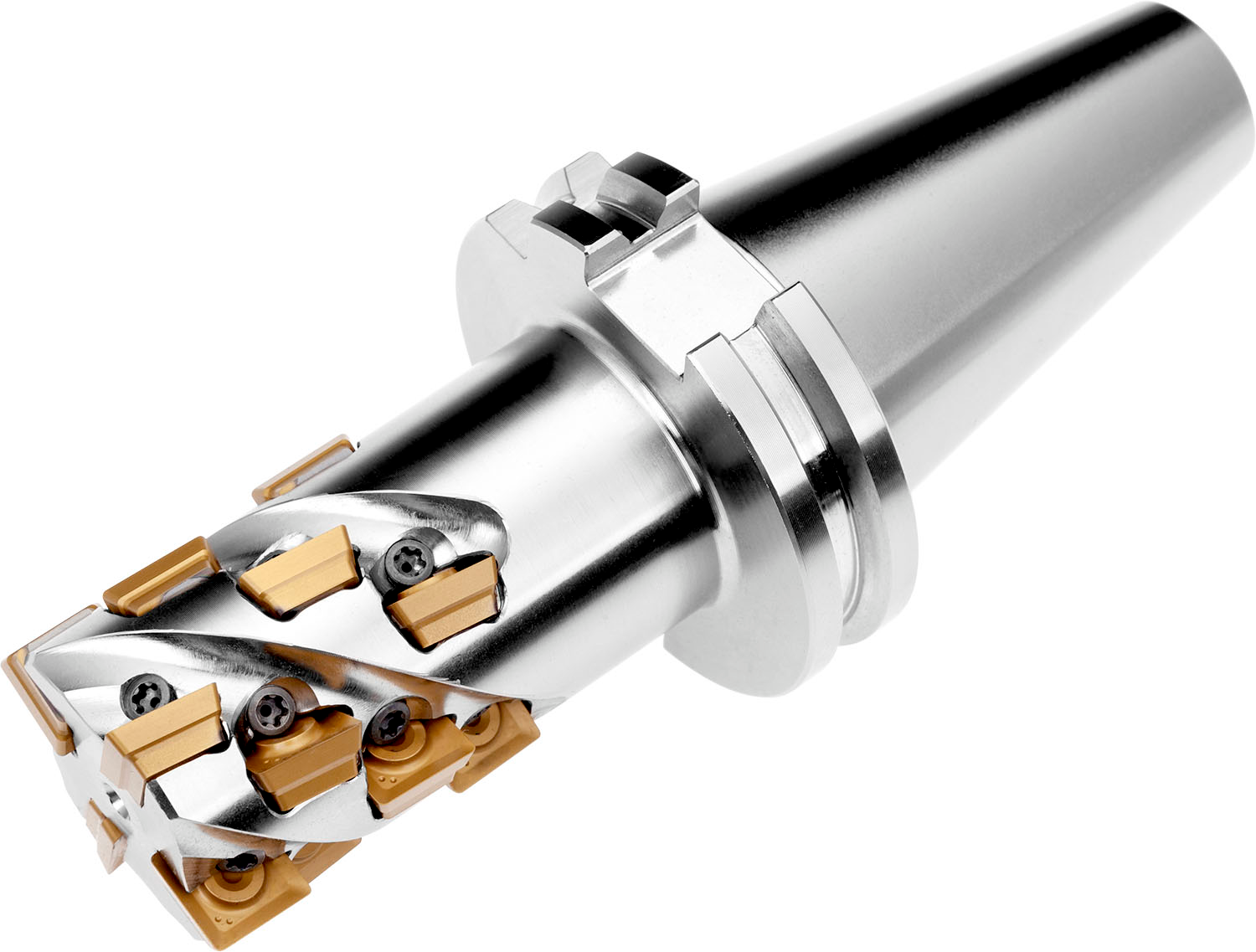

Shoulder mill with extended flute with positve/negative geometry which utilises 16 of SD.. 12.... or SD.. 12.... single-sided inserts, cutting diameter 40 mm with 90° approach angle and SK 40 taper shank according to ISO/DIS 7388-1, 70 mm functional and 158.4 mm overall length for deep shoulder milling and deep slot milling with a maximum depth of cut of 44,1 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6761737
