Dormer-Pramet

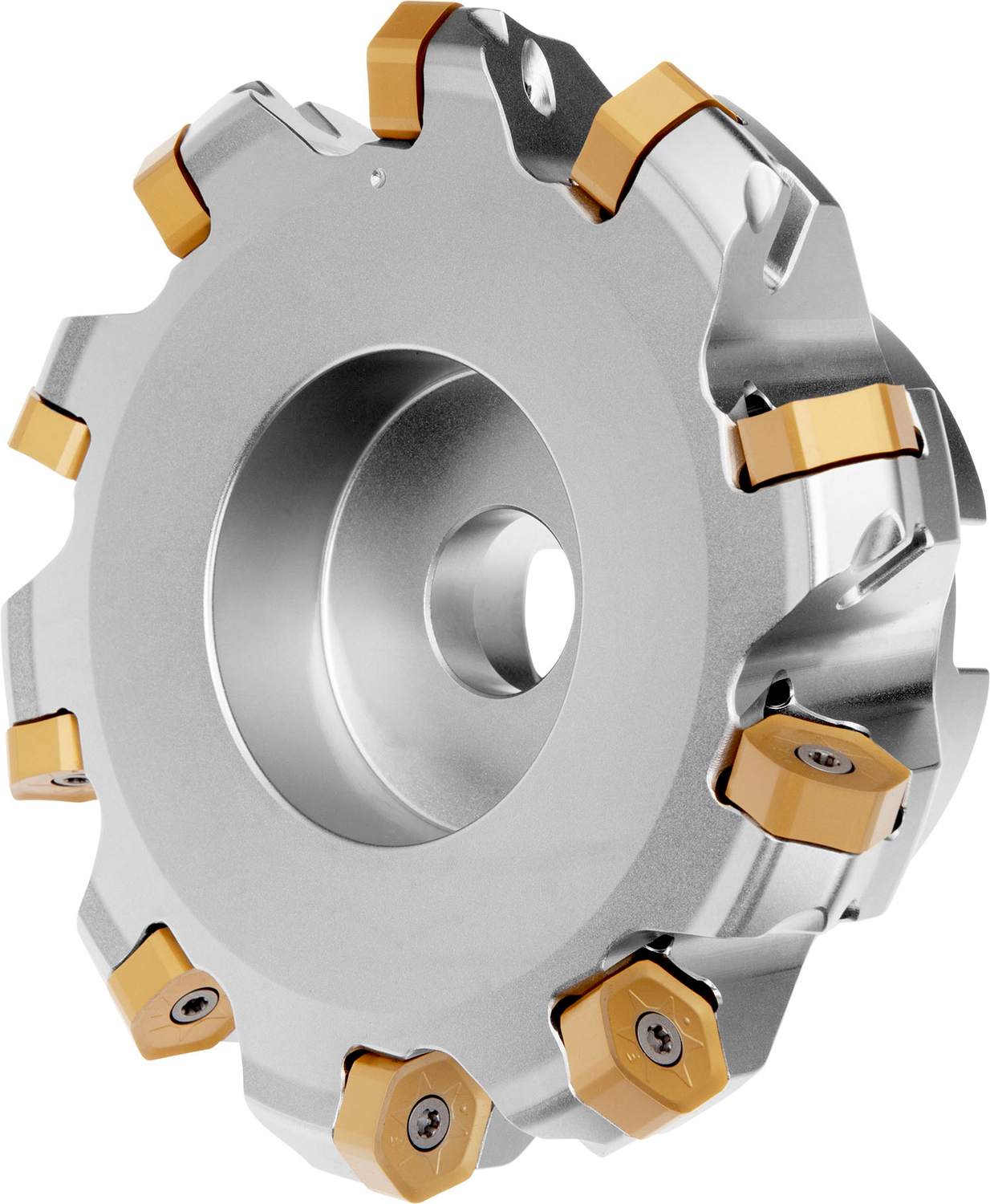

Face mill with double negative geometry which utilises 8 of HN.. 09.... or XN.. 09.... double-sided inserts, cutting diameter 80 to maximum 91.7 mm with 45° approach angle and 27 mm connection bore according to DIN 8030-A, 50 mm protrusion length, through coolant and differential pitch for face milling, ramping, progressive plunge milling and chamfering with a maximum depth of cut of 5.0 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6761568
