Dormer-Pramet

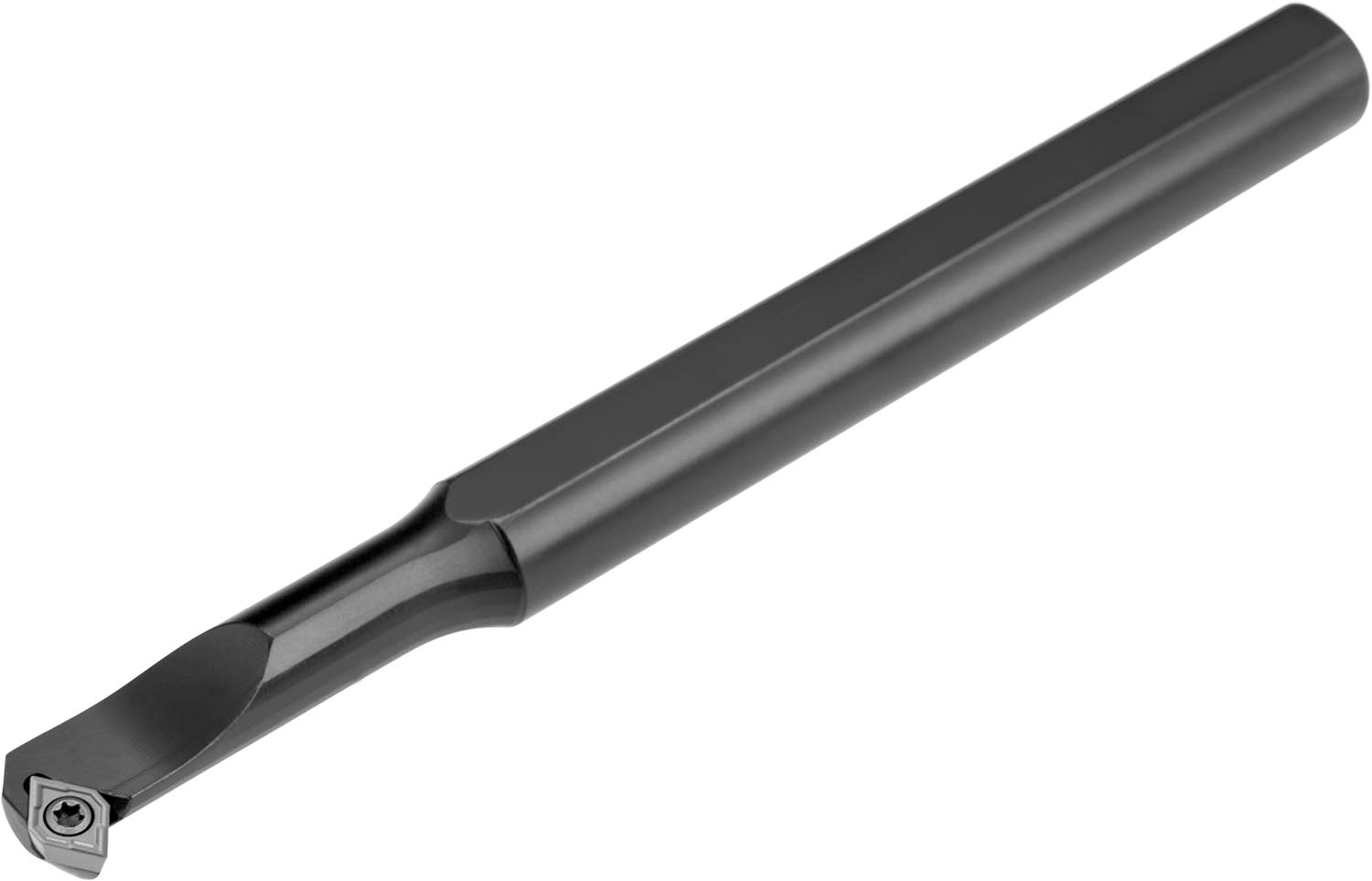

Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 5.56 mm, 2.38 mm thick (ISO designation EP.. 0502.. ), right hand special tool style, steel without coolant hole, 12 mm diameter x 150 mm long for taper boring, single and multi-directional copy boring and back chamfering

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6760476
