SVJCR 1616 H 13

SVJCR 1616 H 13

$174.03 CAD $179.00 CAD
Skip to product information
SVJCR 1616 H 13
SVJCR 1616 H 13

Dormer-Pramet

SVJCR 1616 H 13

Material ID: 6760441

$174.03 CAD $179.00 CAD

SVJCR 1616 H 13

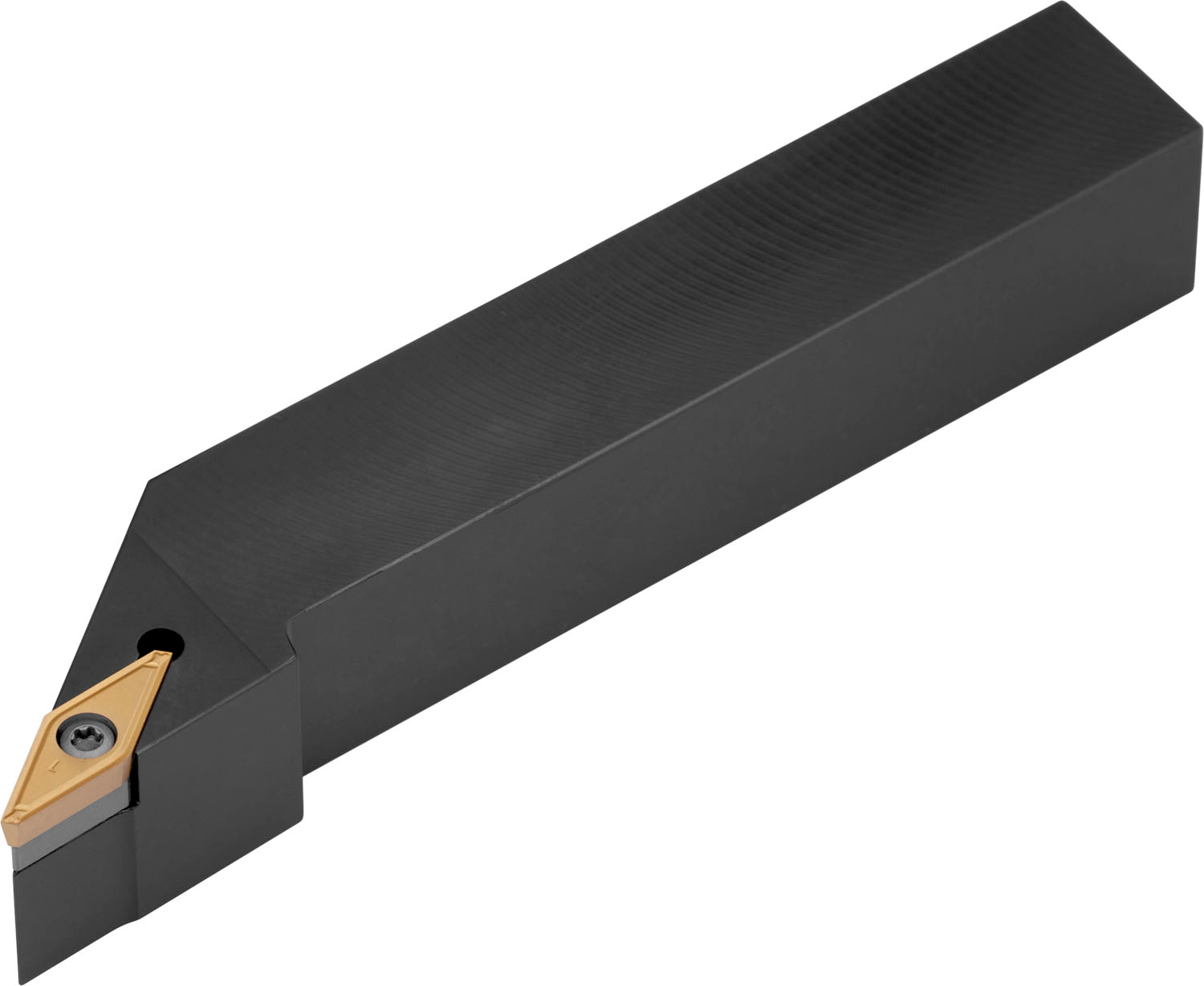

Turning Toolholder ISO S

Material ID: 6760441


Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 7.94 mm, 3.18 mm thick (ISO designation VC.. 1303.. ), right hand 93° side cutting with off-set shank, 16 mm tool height x 16 mm width x 100 mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6760441
