SVJCR 1212 N 13

SVJCR 1212 N 13

$174.03 CAD $179.00 CAD
Skip to product information
SVJCR 1212 N 13
SVJCR 1212 N 13

Dormer-Pramet

SVJCR 1212 N 13

Material ID: 6760440

$174.03 CAD $179.00 CAD

SVJCR 1212 N 13

Turning Toolholder ISO S

Material ID: 6760440

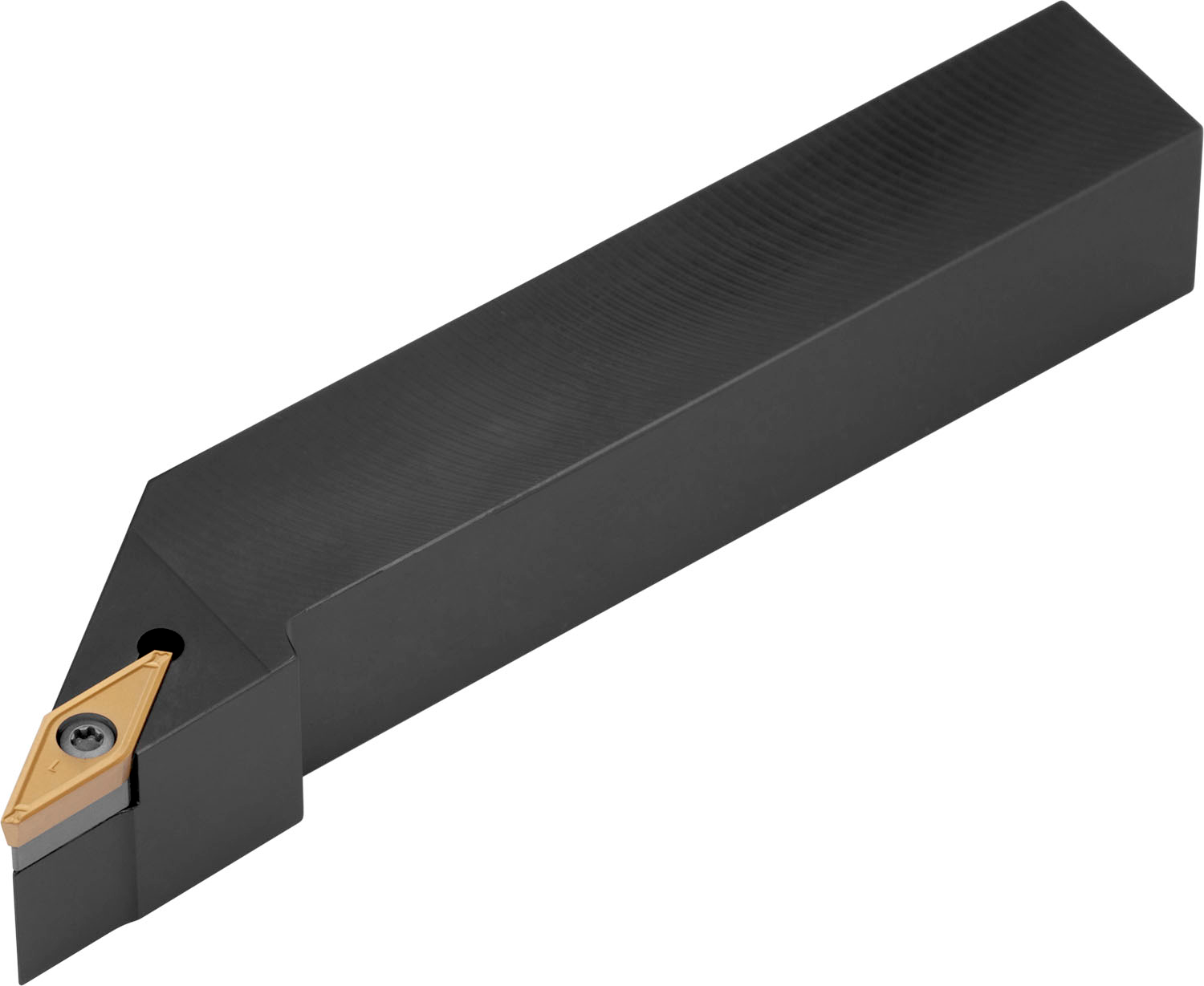

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 7.94 mm, 3.18 mm thick (ISO designation VC.. 1303.. ), right hand 93° side cutting with off-set shank, 12 mm tool height x 12 mm width x 160 mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6760440
