Dormer-Pramet

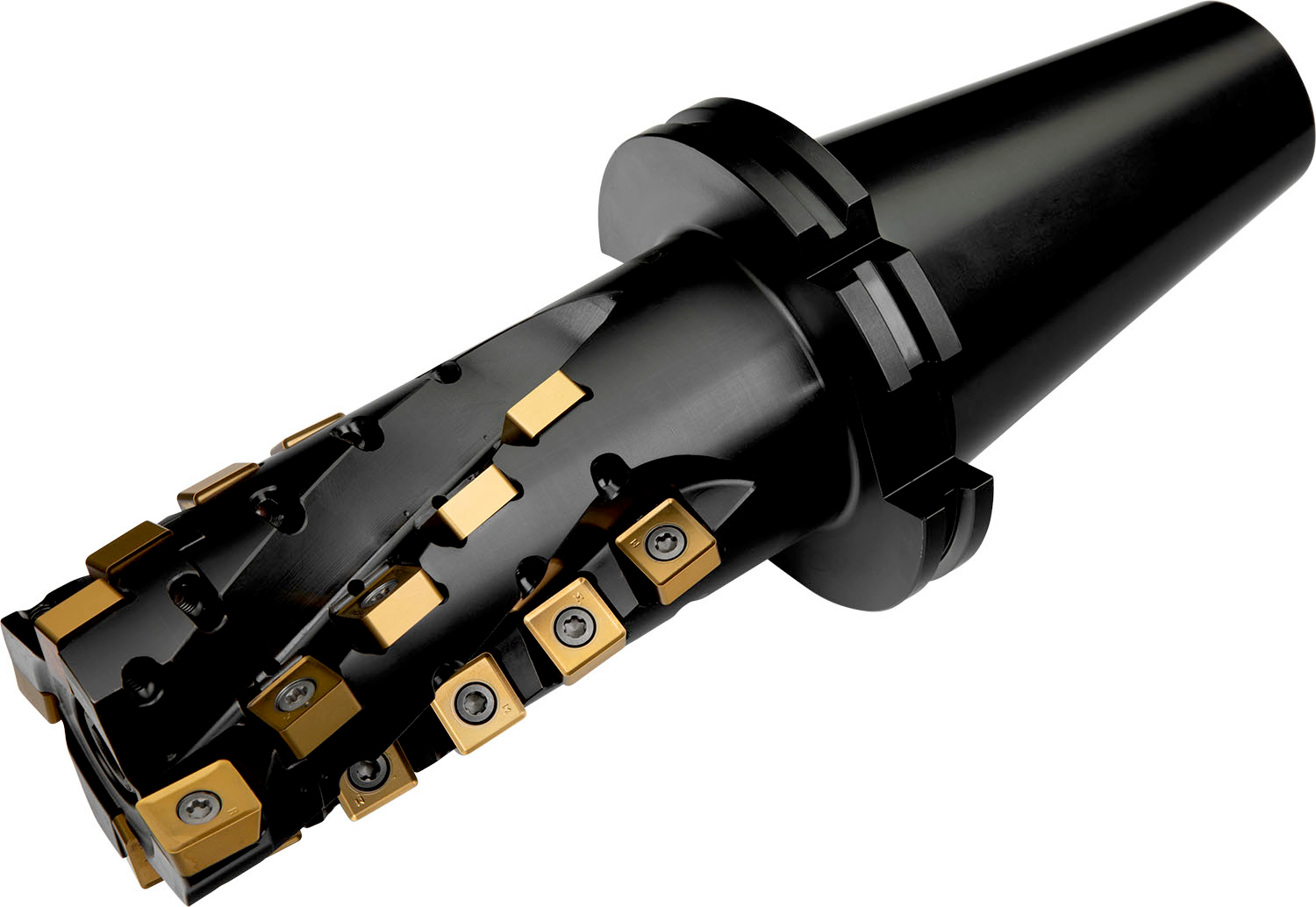

Shoulder mill with extended flute with double negative geometry which utilises 2 of LN.. 16.... and 20 SN.. 1305.. double-sided inserts, cutting diameter 63 mm with 90° approach angle and SK 50 taper shank according to ISO/DIS 7388-1, 104 mm functional and 257 mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 104 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6760428
