Dormer-Pramet

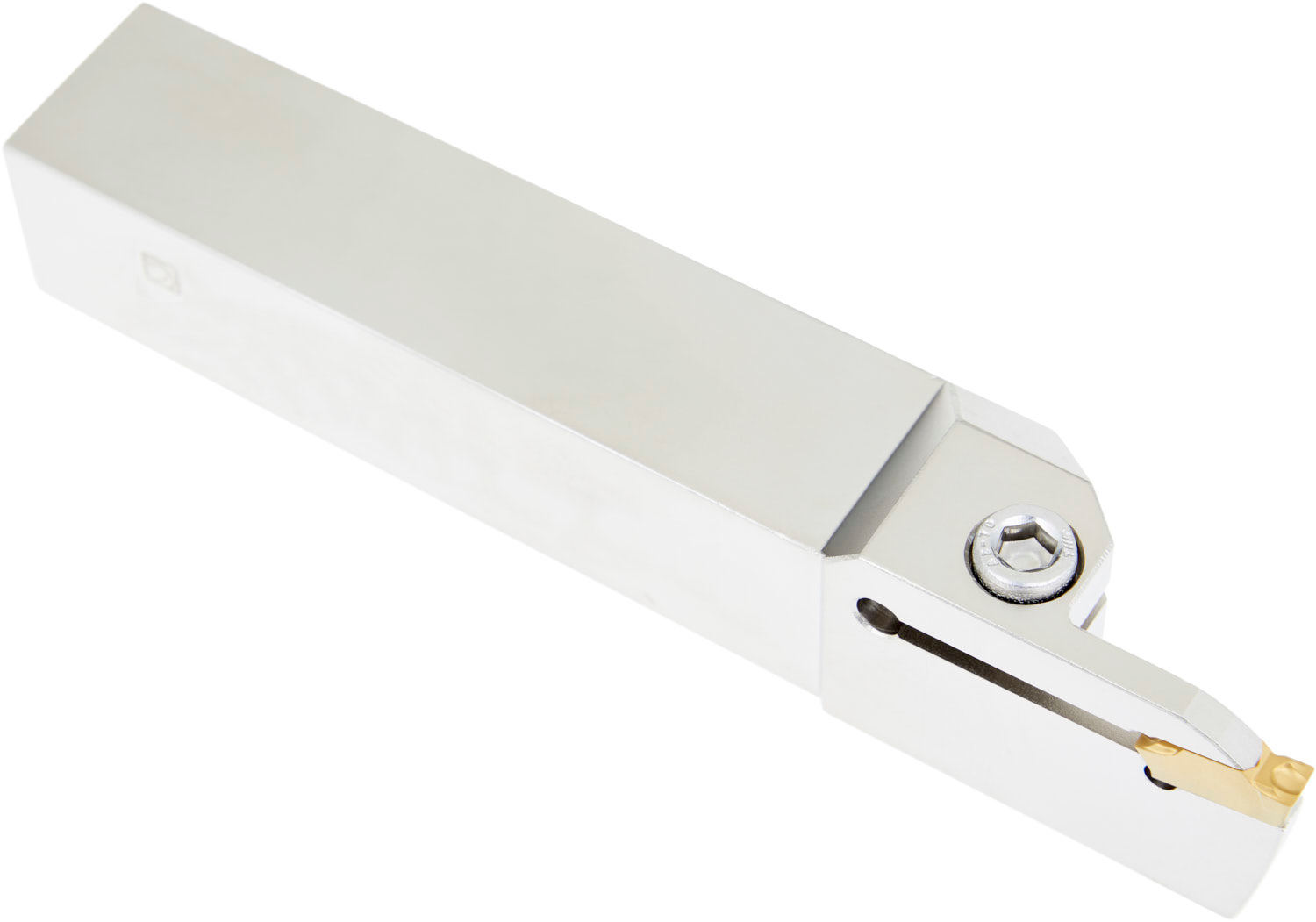

Top clamp grooving tool for holding a 16.4 mm long double or single ended insert with 3 mm cutting width (designation LCM. 0316.. ), left handed with insert parallel to the shank for a maximum parting diameter of 30 mm, shank height 20 mm, width 20 mm and tool length 125 mm for multi-directional copy turning, shallow and deep radial grooving, radial groove turning, parting-off and tube parting-off

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6760365
