Dormer-Pramet

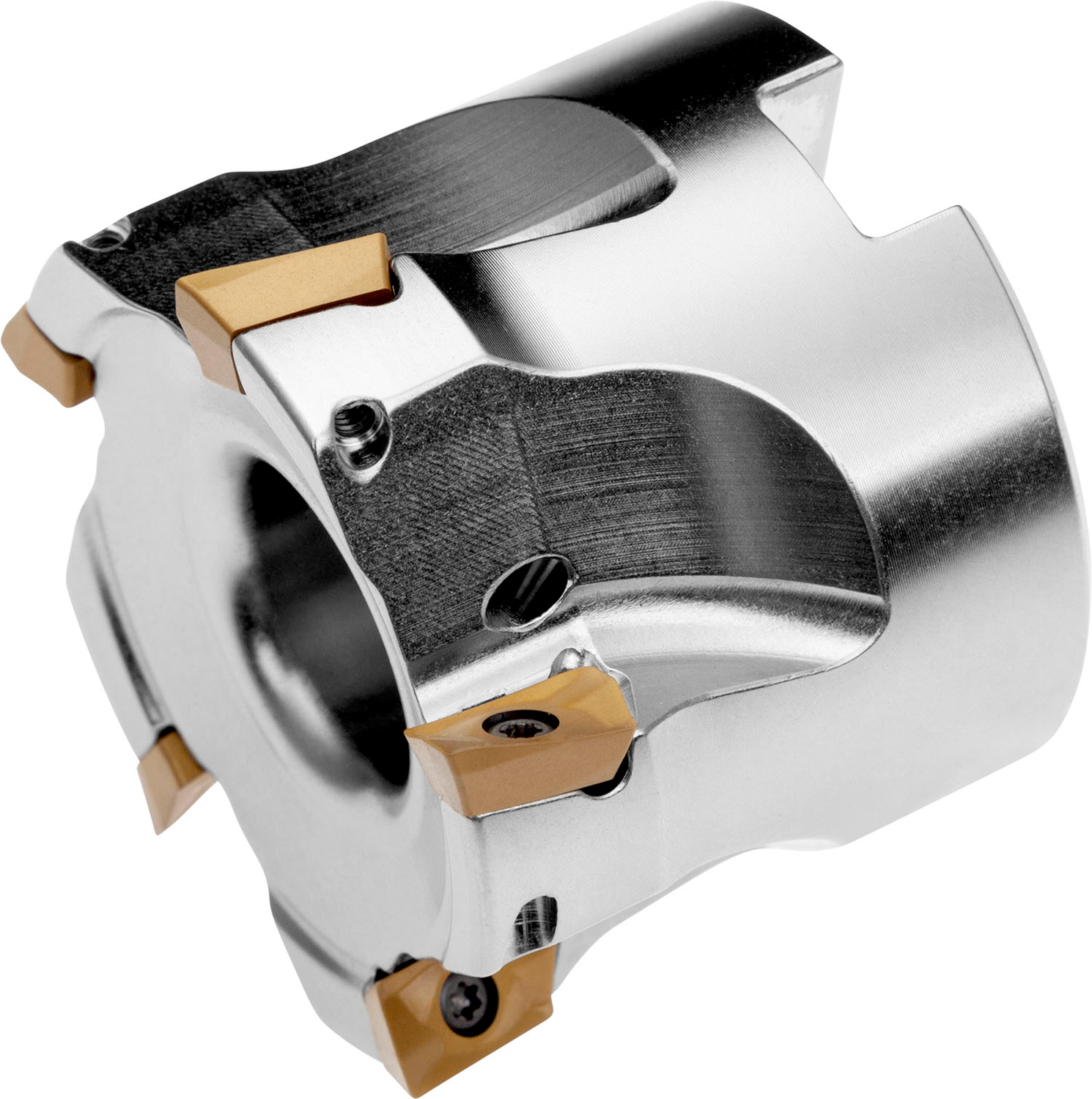

Shoulder mill with positve/negative geometry which utilises 7 of AD.. 11.... or AD.. 11.... single-sided inserts, cutting diameter 50 mm with 90° approach angle and 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant and differential pitch for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6760201
