Dormer-Pramet

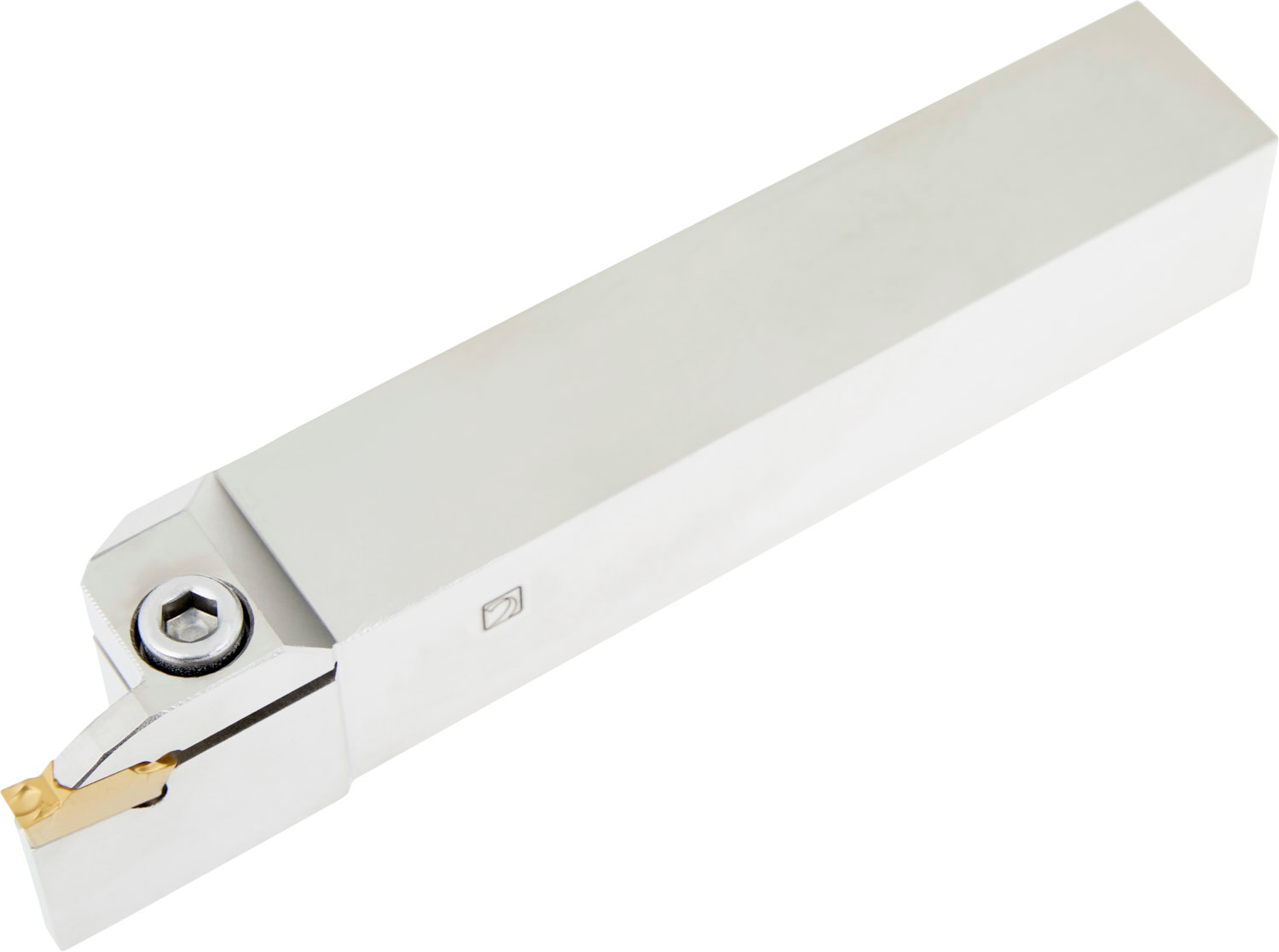

Top clamp grooving tool for holding a 30 mm long double or single ended insert with 8 mm cutting width (designation LCM. 0830.. ), right handed with insert parallel to the shank for a maximum parting diameter of 48 mm, shank height 32 mm, width 25 mm and tool length 170 mm for multi-directional copy turning, shallow and deep radial grooving, radial groove turning, parting-off and tube parting-off

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6759692
