63A05R-SMOZD12-C

63A05R-SMOZD12-C

$809.86 CAD $833.00 CAD
Skip to product information
63A05R-SMOZD12-C
63A05R-SMOZD12-C

Dormer-Pramet

63A05R-SMOZD12-C

Material ID: 6759669

$809.86 CAD $833.00 CAD

63A05R-SMOZD12-C

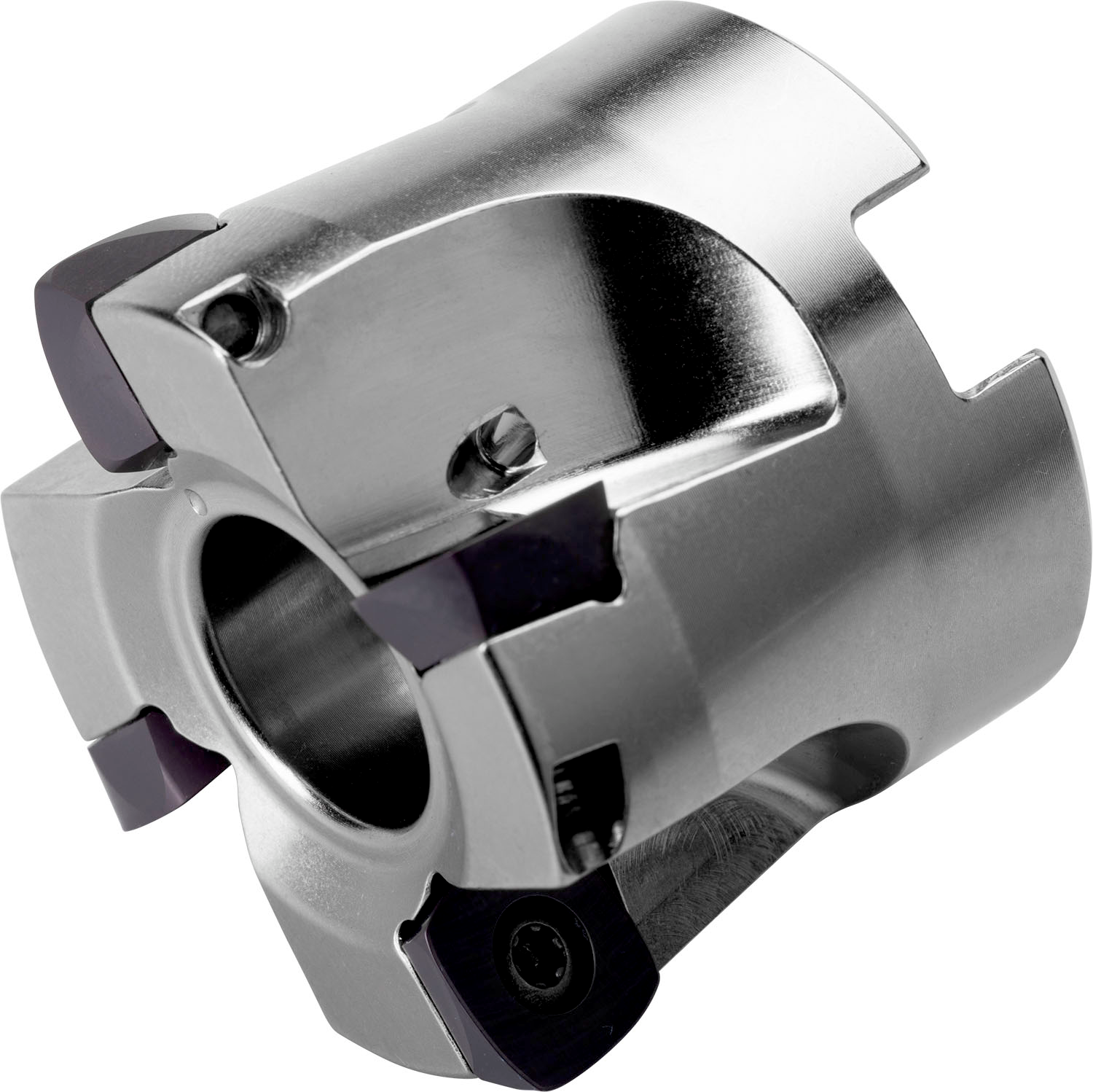

Shell Milling Cutter - High Feed

Material ID: 6759669


High feed cutter with positve/negative geometry which utilises 5 off ZDEW 1204.. single-sided inserts, cutting diameter 63mm with 22mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant and differential pitch for face milling

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centres, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6759669
