Dormer-Pramet

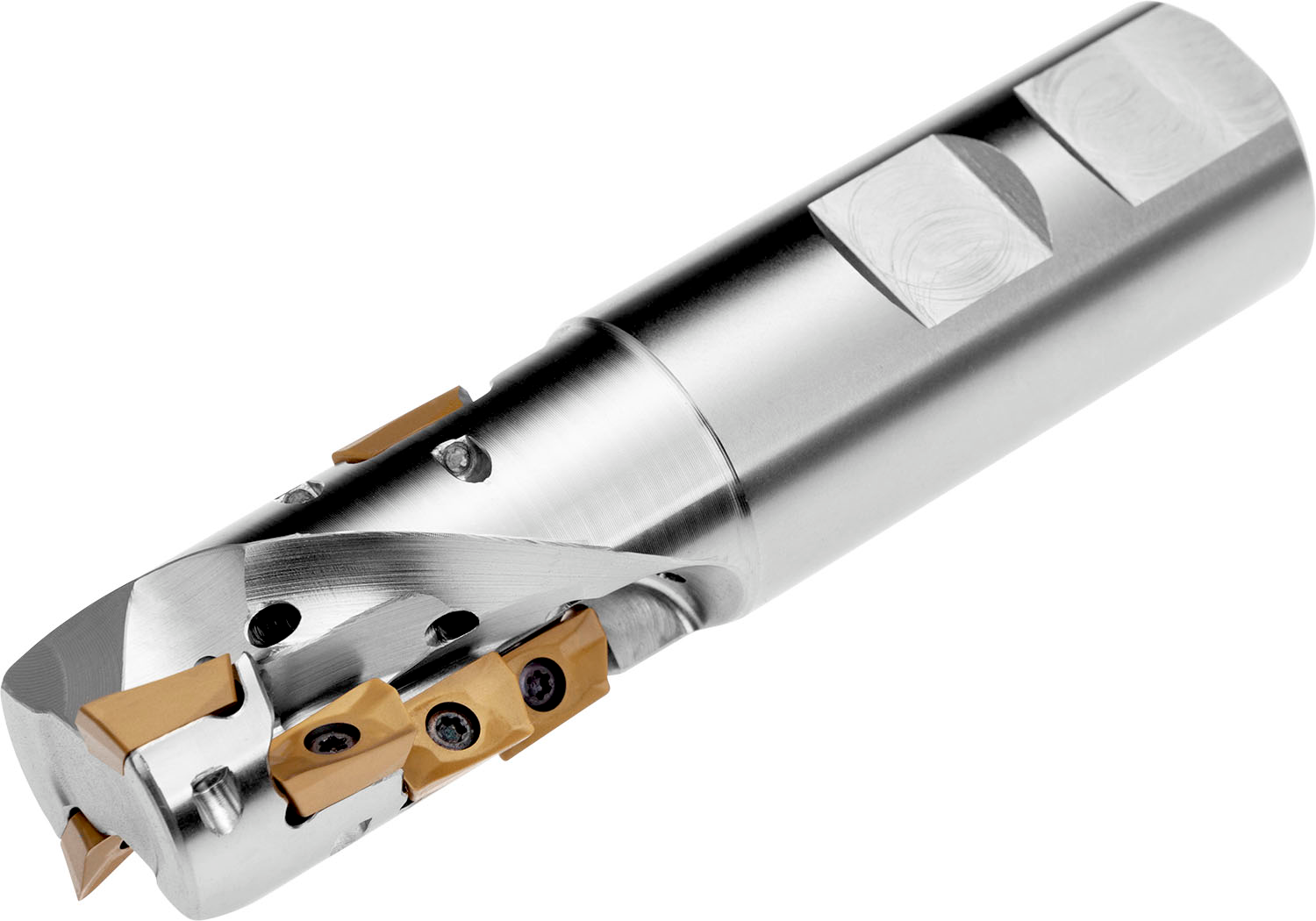

Shoulder mill with extended flute with positve/negative geometry which utilises 10 of AD.. 11.... single-sided inserts, cutting diameter 40 mm with 90° approach angle and 40 mm Weldon shank according to DIN 1835B, 47 mm functional and 130.0 mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 47 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6759645
