Dormer-Pramet

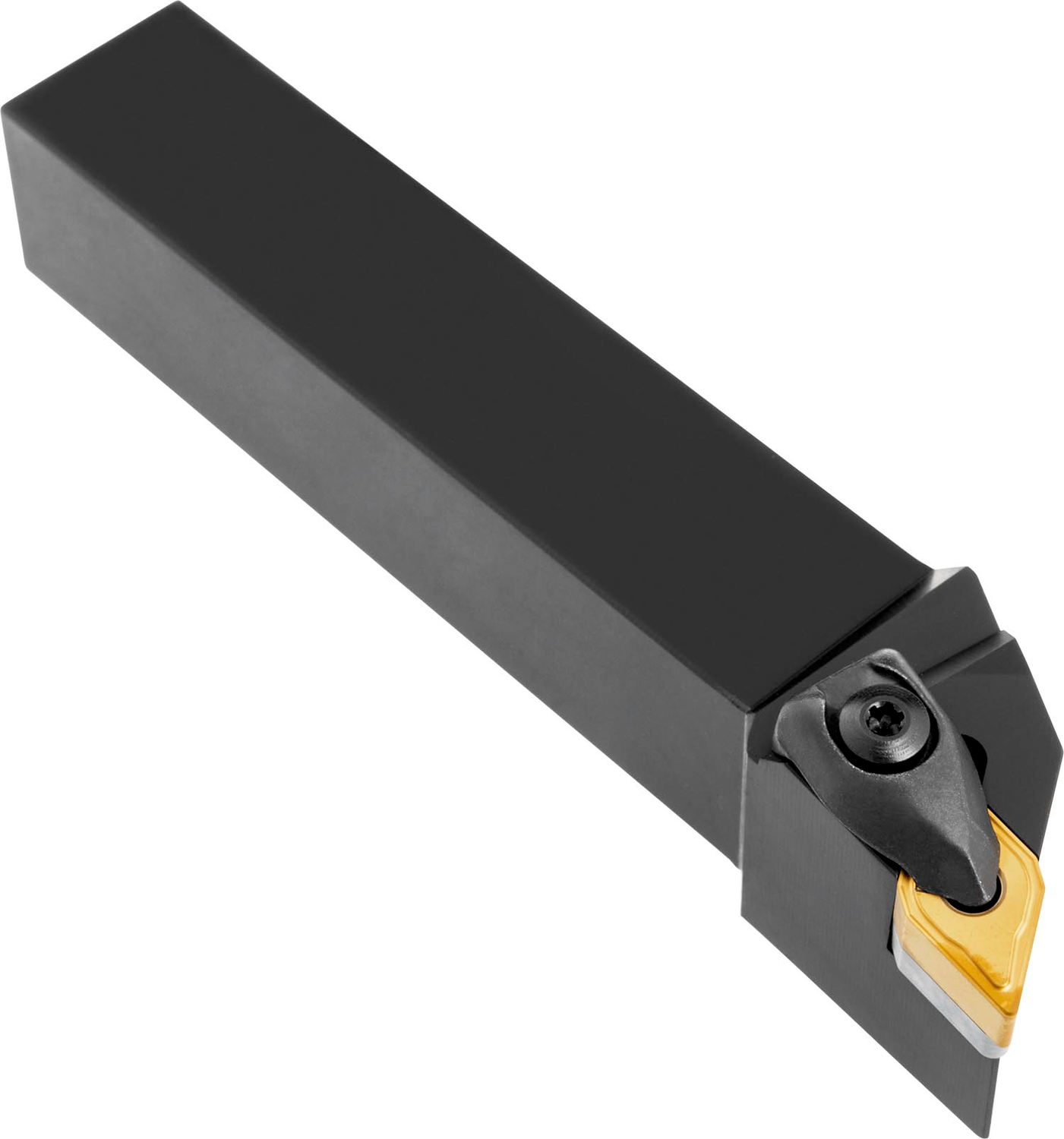

Double clamp turning tool for holding a 55° rhombus negative insert with an inscribed circle diameter of 9.525 mm, 4.76 mm thick (ISO designation DN.. 1104.. ), left hand 93° side cutting with off-set shank, 20 mm tool height x 20 mm width x 125 mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6758540
