Dormer-Pramet

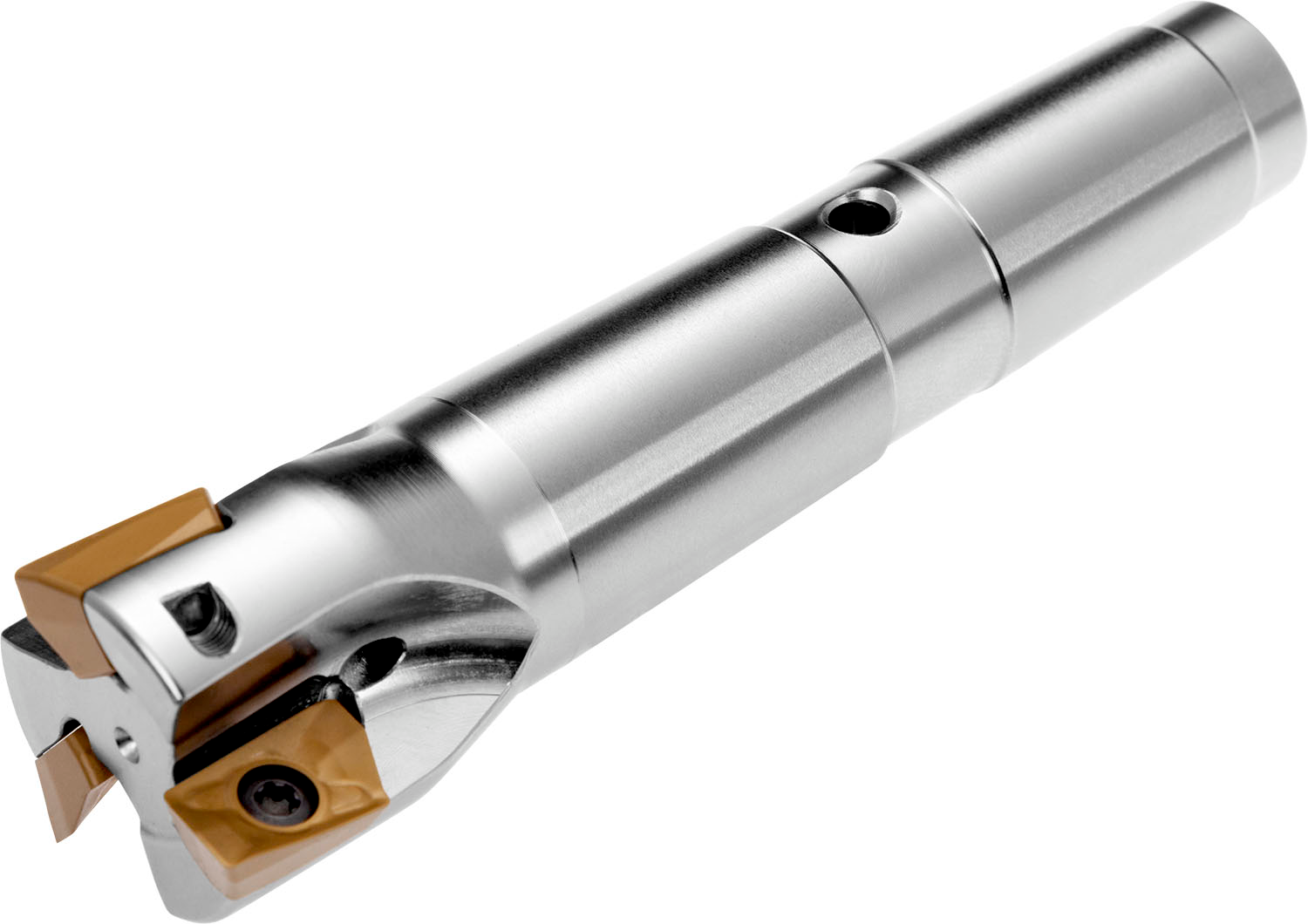

Shoulder mill with positve/negative geometry which utilises 3 of AD.. 16.... or AD.. 16.... single-sided inserts, cutting diameter 40 mm with 90° approach angle and MT 4 morse taper shank according to DIN 228-1A, 48 mm functional and 110 mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6758507
