Dormer-Pramet

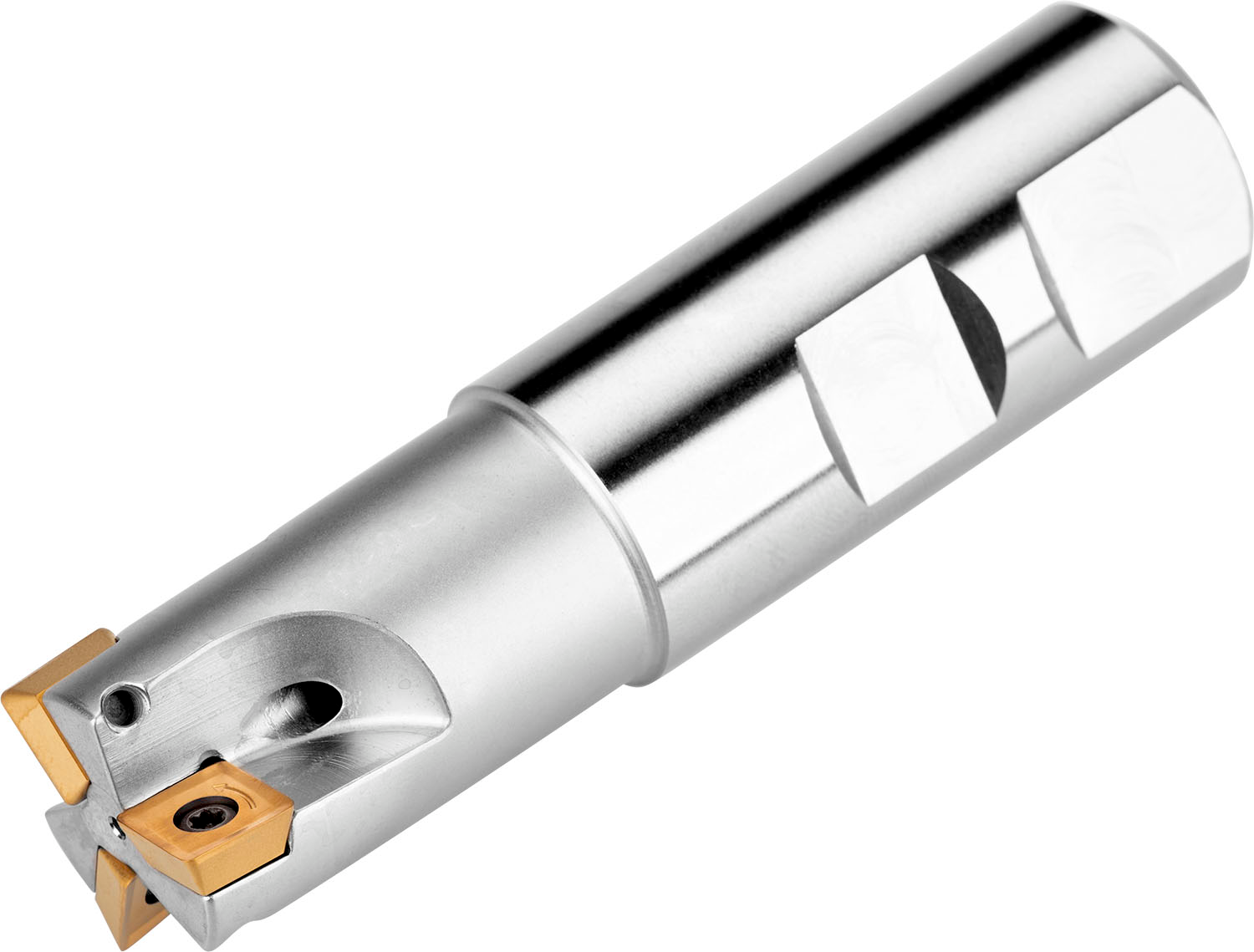

Shoulder mill with positve/negative geometry which utilises 3 of SO.. 09.... single-sided inserts, cutting diameter 25 mm with 90° approach angle and 25 mm Weldon shank according to DIN 1835B, 98 mm overall length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 8.0 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6758359
