Dormer-Pramet

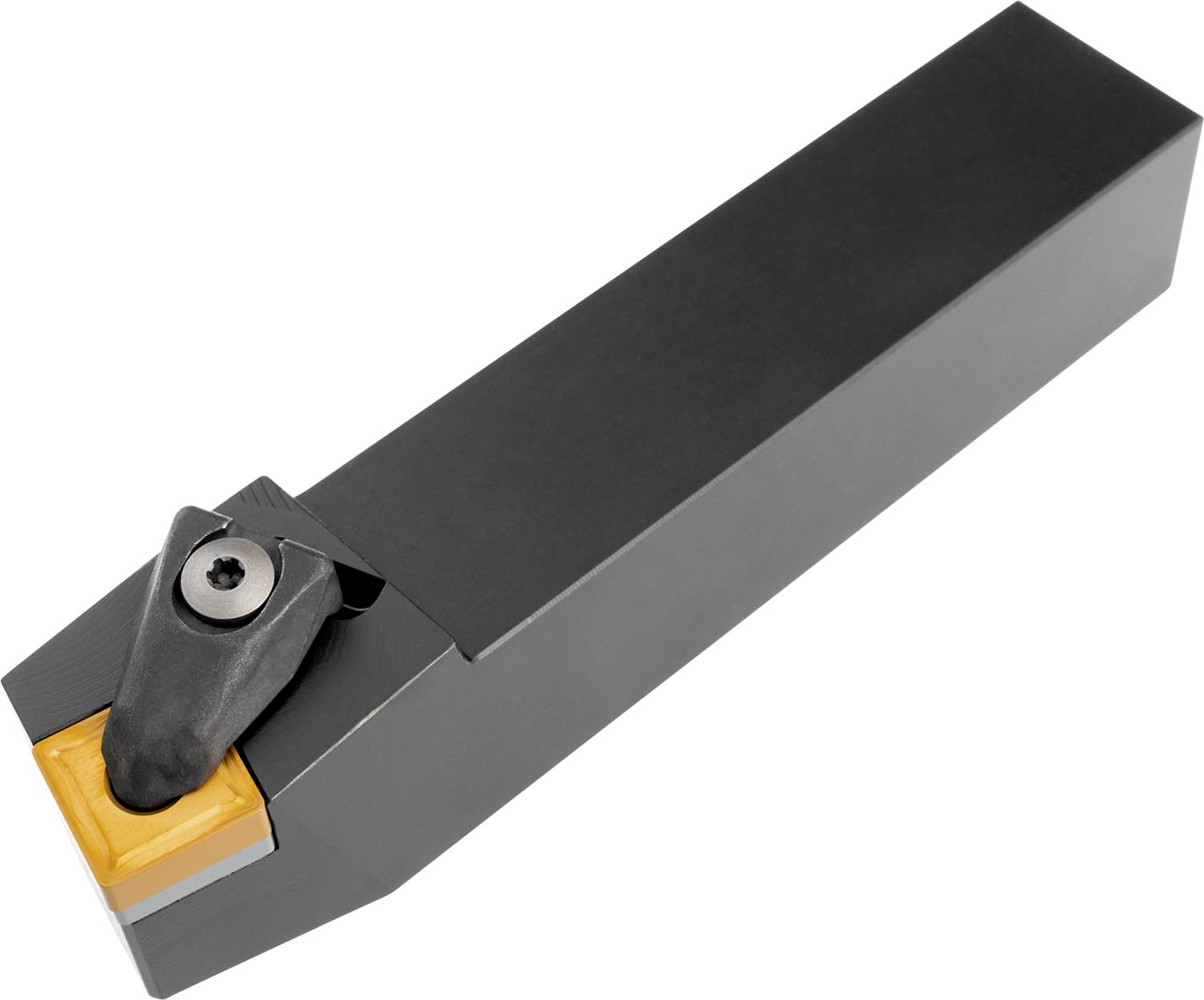

Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 19.05 mm, 6.35 mm thick (ISO designation SN.. 1906.. ), right hand 75° side cutting with straight shank, 32 mm tool height x 32 mm width x 170 mm long for taper turning and longitudinal turning without shoulder

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6757944
