80J6R151X50-SSAP95-A

80J6R151X50-SSAP95-A

$2,417.92 CAD $2,487.00 CAD
Skip to product information
80J6R151X50-SSAP95-A
80J6R151X50-SSAP95-A

Dormer-Pramet

80J6R151X50-SSAP95-A

Material ID: 6757751

$2,417.92 CAD $2,487.00 CAD

80J6R151X50-SSAP95-A

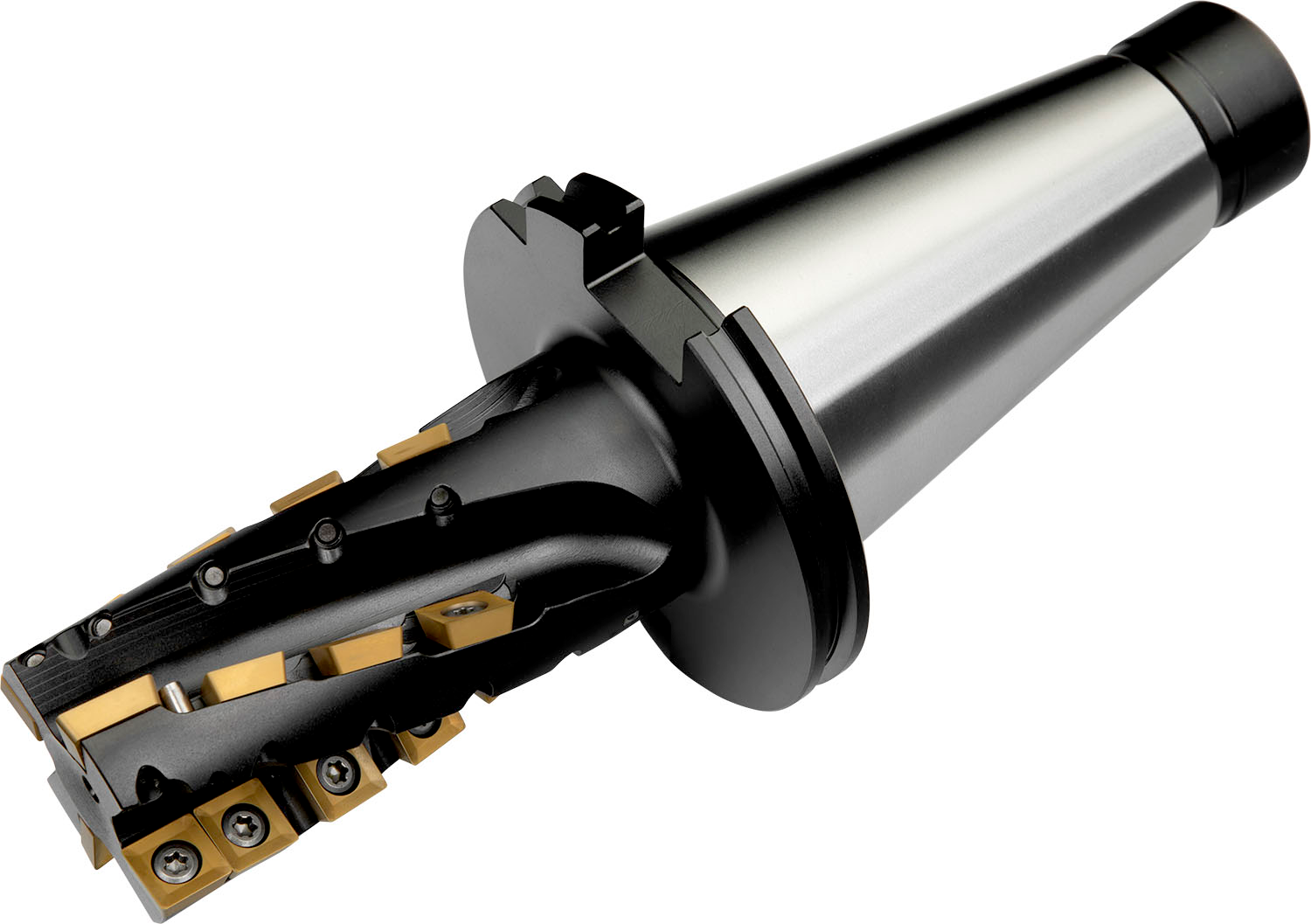

Helical End Milling Cutter - Square Shoulder

Material ID: 6757751


Shoulder mill with extended flute with positve/negative geometry which utilises 3 of APE. 1504.. and 30 SPE. 1204.. single-sided inserts, cutting diameter 80 mm with 90° approach angle and BT 50 taper shank according to JIS B 6339, 95 mm functional and 275 mm overall length for deep shoulder milling and deep slot milling with a maximum depth of cut of 95 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6757751
