Dormer-Pramet

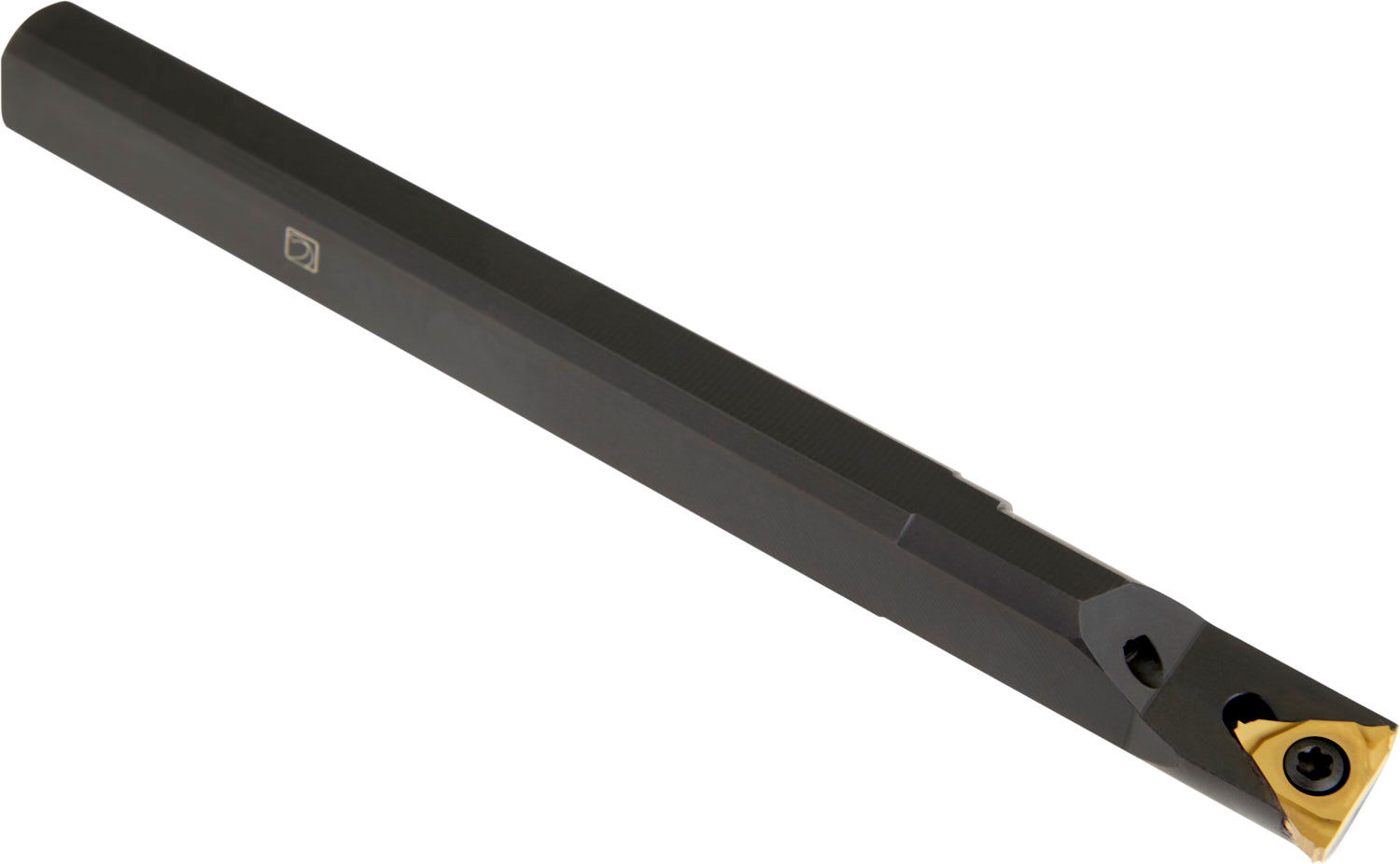

Screw clamp thread turning bar with 1° helix angle for holding a triangle shaped insert with an inscribed circle diameter of 6.35 mm (designation TN 11NL.. ), left hand standard design with straight shank made of steel without coolant hole, 16 mm diameter and 125 mm overall length for internal threading, circlip grooving, and o-ring grooving

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6757166
