Dormer-Pramet

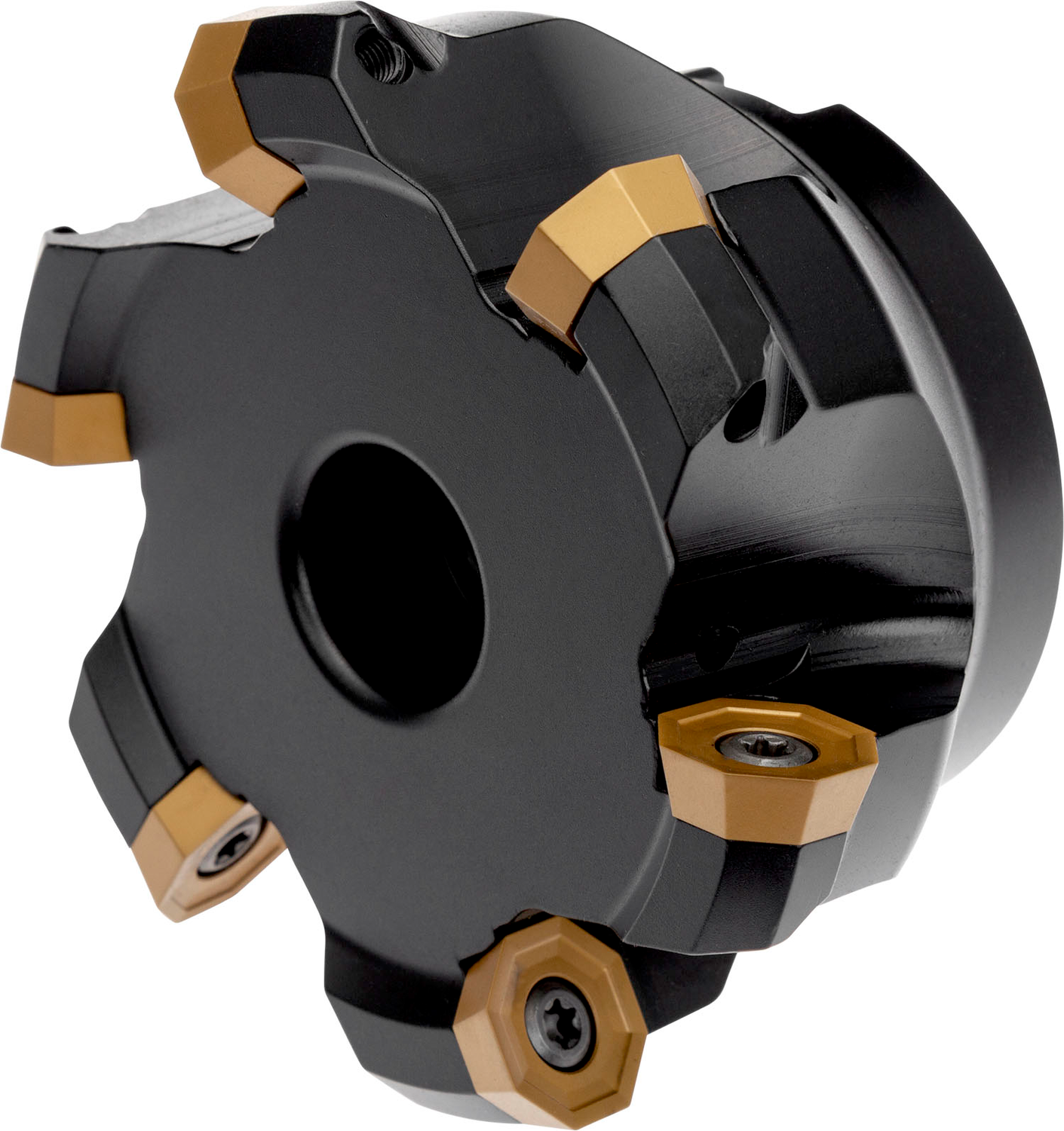

Face mill with positve/negative geometry which utilises 8 of OD.. 0605ZZ.. or RP.. 1505MO.. single-sided inserts, cutting diameter 125 to maximum 134.5 mm with 45° approach angle and 40 mm connection bore according to DIN 8030-A, 63 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.1 (8.6)mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6756819
