Dormer-Pramet

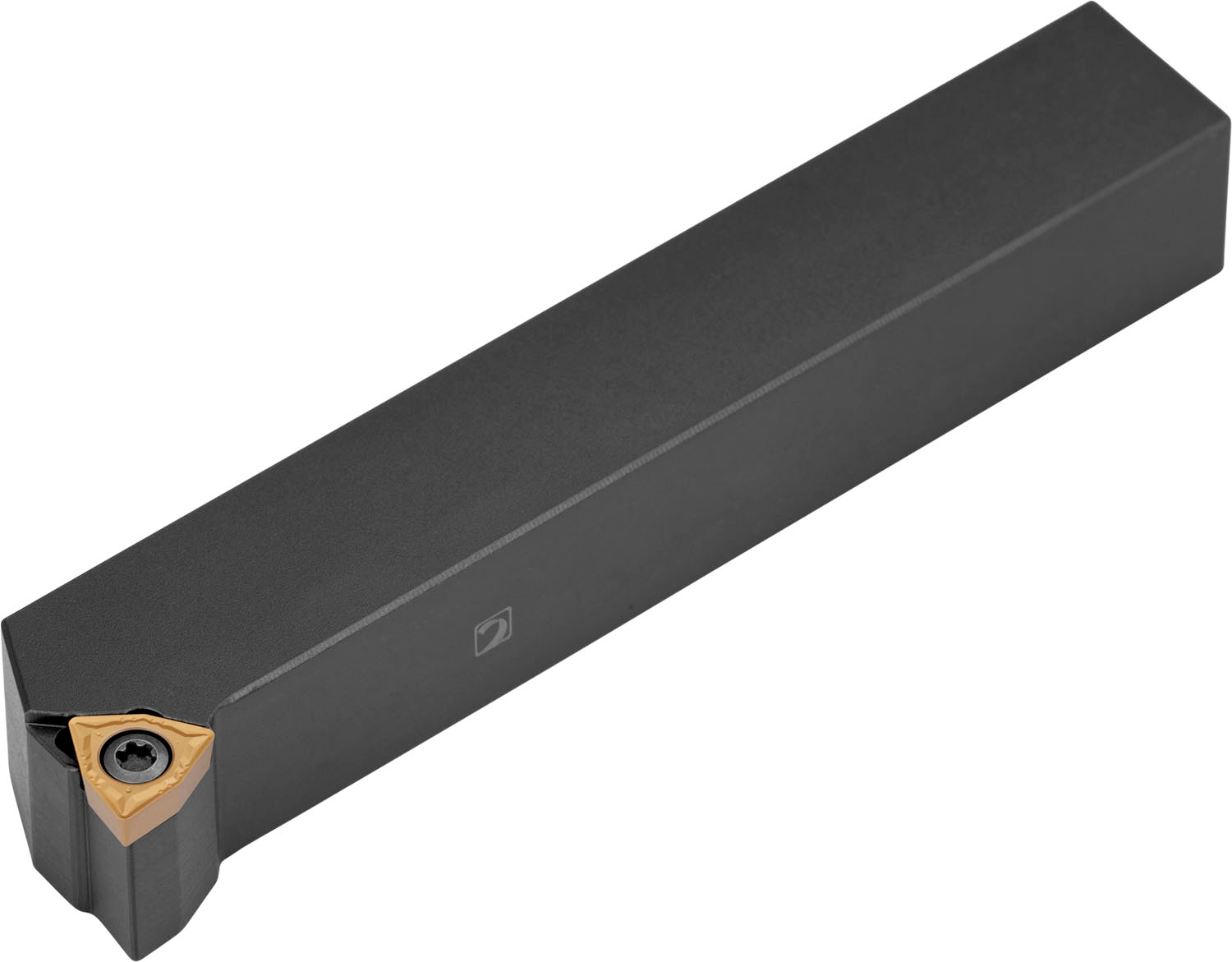

Screw clamp turning tool for holding a 80° trigon positive insert with an inscribed circle diameter of 9.525 mm, 3.97 mm thick (ISO designation WC.. 06T3.. ), right hand 95° side and end cutting with off-set shank, 20 mm tool height x 20 mm width x 125 mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6756809
