Dormer-Pramet

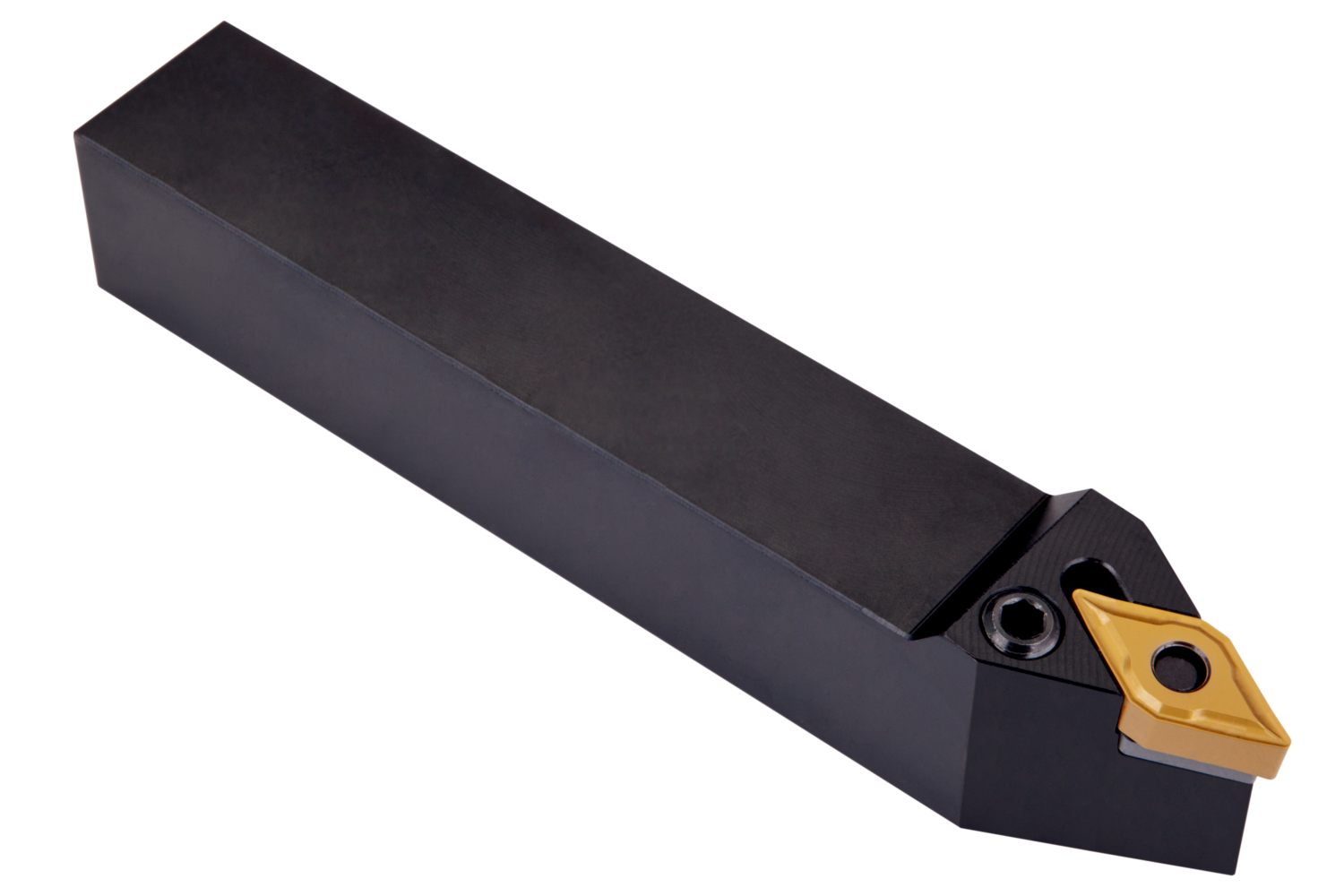

Lever lock turning tool for holding a 55° rhombus negative insert with an inscribed circle diameter of 9.525 mm, 4.76 mm thick (ISO designation DN.. 1104.. ), left hand 62°30' side cutting with straight shank, 25 mm tool height x 25 mm width x 150 mm long for single and multi-directional copy turning

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6756754
