SVJCR 3225 P 16-M-A
SVJCR 3225 P 16-M-A

Dormer-Pramet

SVJCR 3225 P 16-M-A

Material ID: 6756624

$205.14 CAD $211.00 CAD

SVJCR 3225 P 16-M-A

Turning Toolholder ISO S

Material ID: 6756624

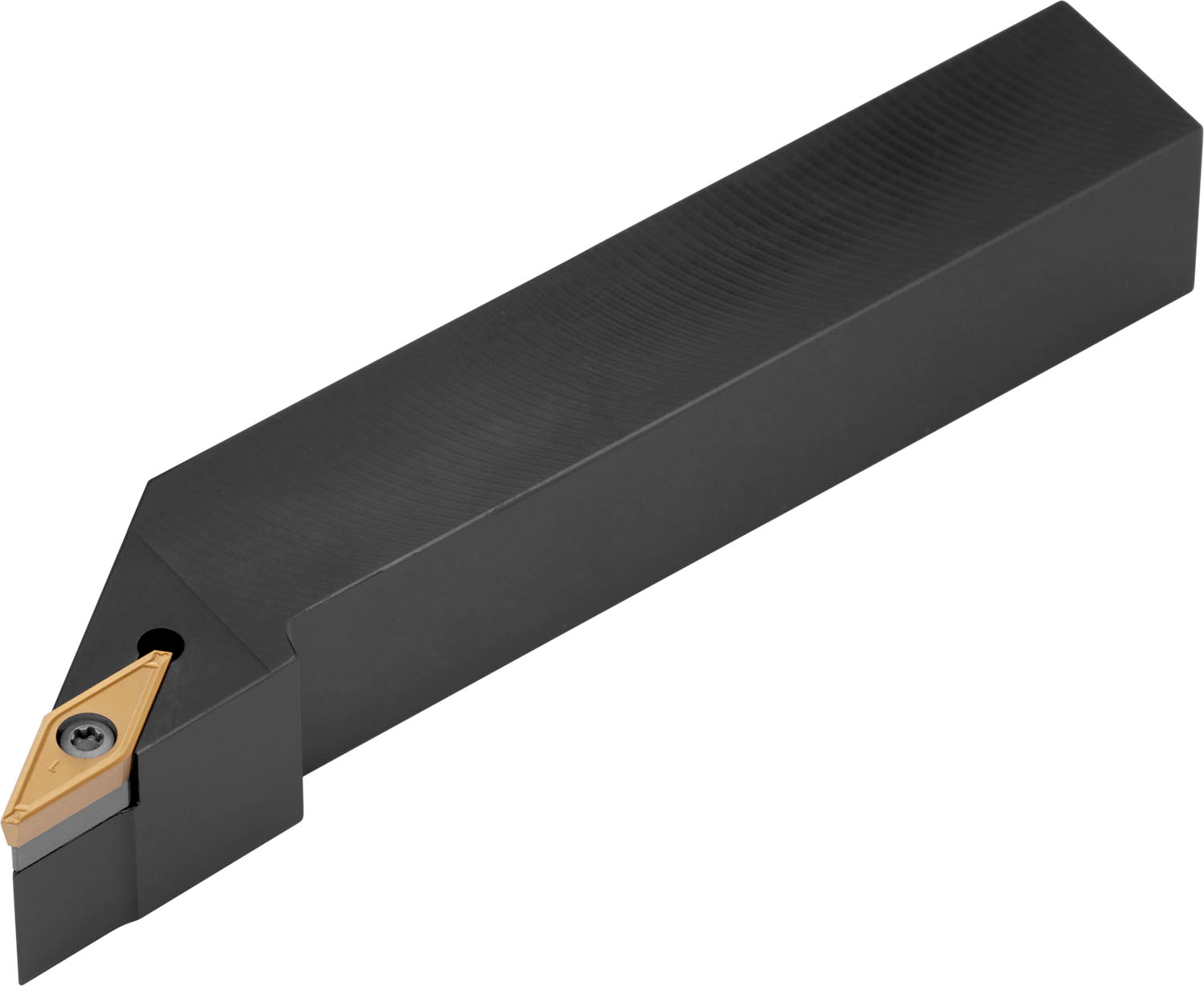

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 9.525 mm, 4.76 mm thick (ISO designation VB.. 1604.. or VC.. 1604.. ), right hand 93° side cutting with off-set shank, 32 mm tool height x 25 mm width x 170 mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/6756624
